Create Plan
“Create Plan” directs the user to the screen where a new plan definition is made in the system.The following steps are followed to create a new plan;

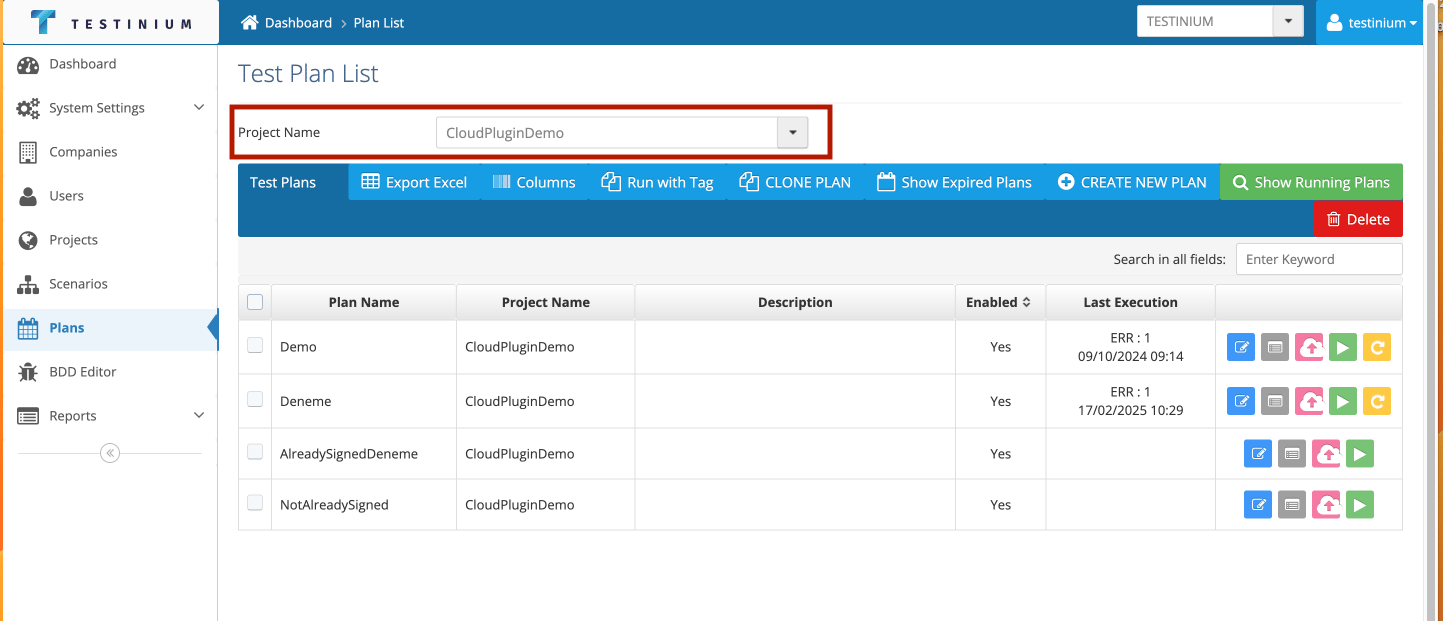

- Select a project from the main Plans screen.
If the Create New Plan button is clicked without selecting the Project Name, the system displays the error message regarding the project name selection.

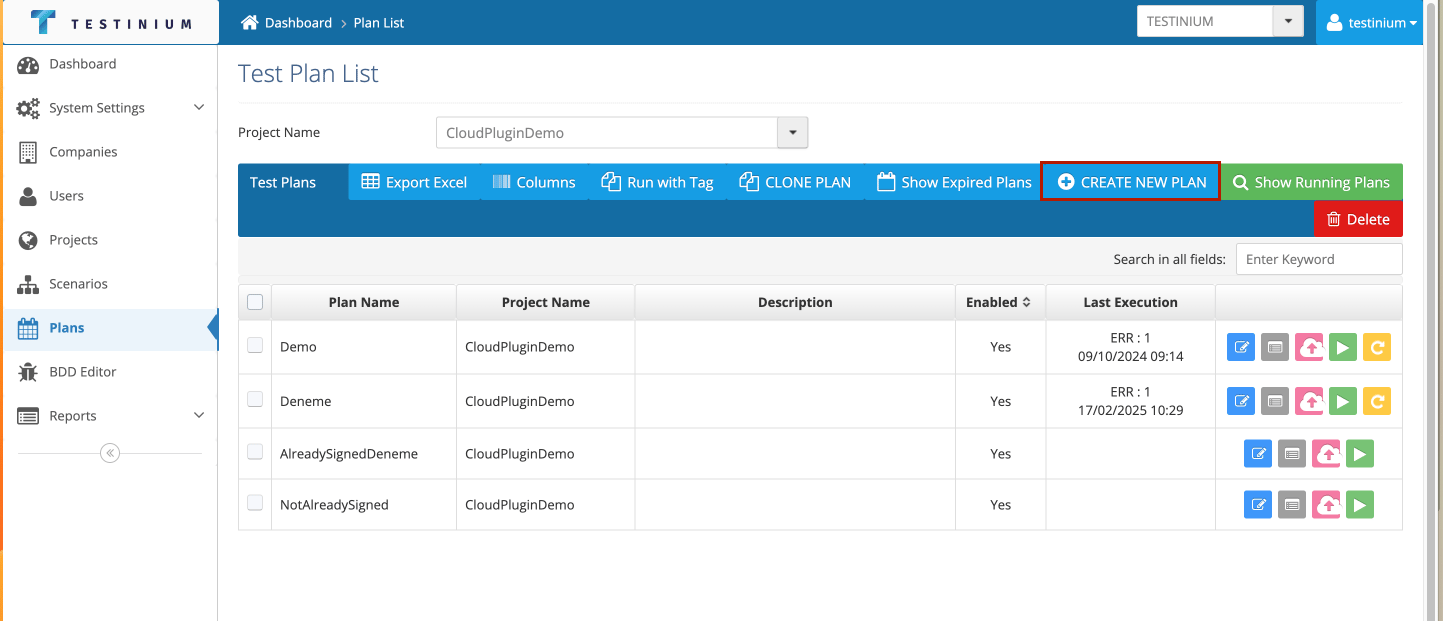

- Create the Create New Plan button.

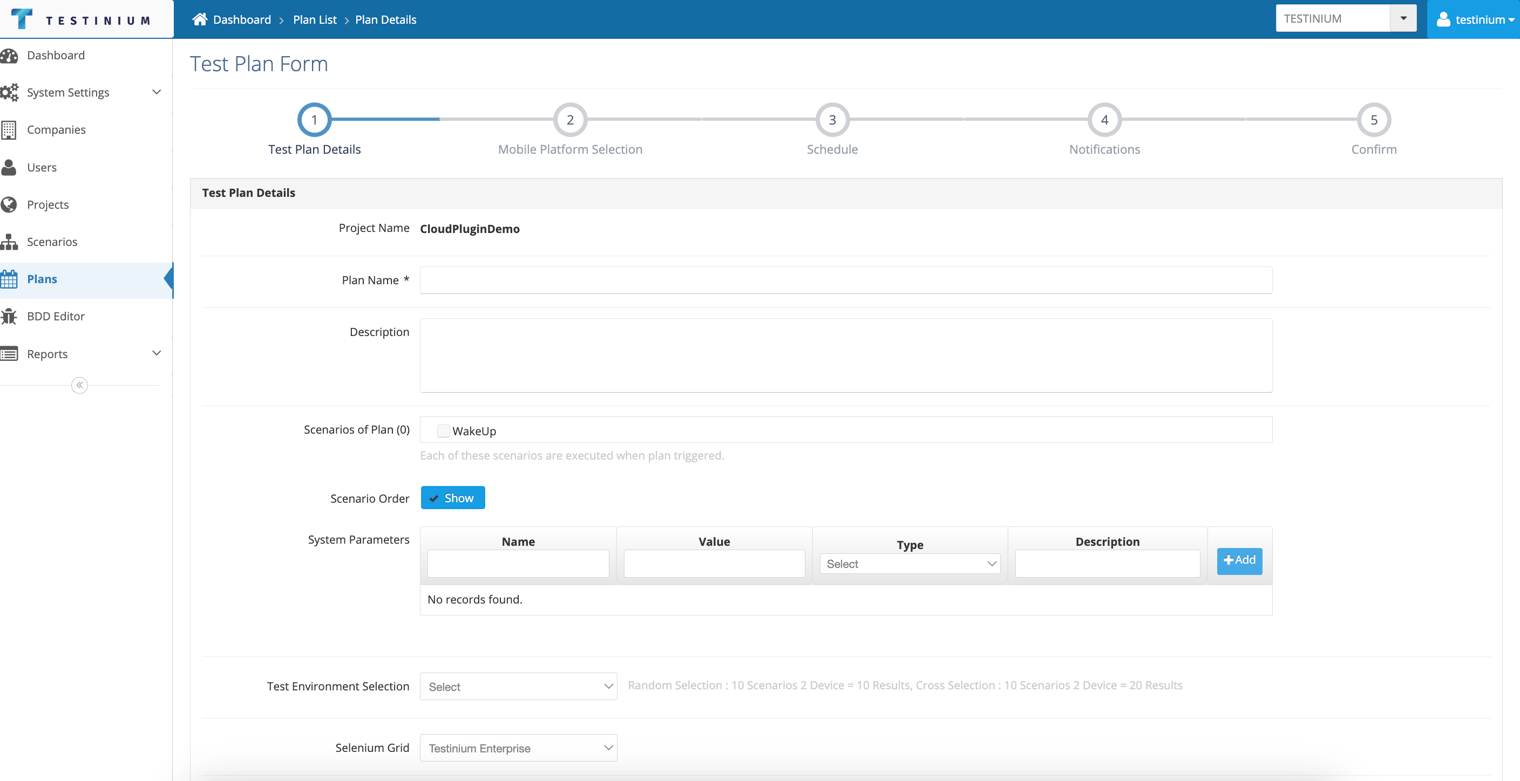

- Enter the fields below in the Test Plan Details form;
- Project Name
- Plan Name
- Description
- Scenarios of Plan
- Add Parameters / Java Test Parameters; Clicking the Add Parameters button, the system displays the Java Test Parameters field. The following fields are entered to add parameters.
- Name
- Value
- Description
- Selenium Grid; The environment where the tests will run, Enterprise or Cloud

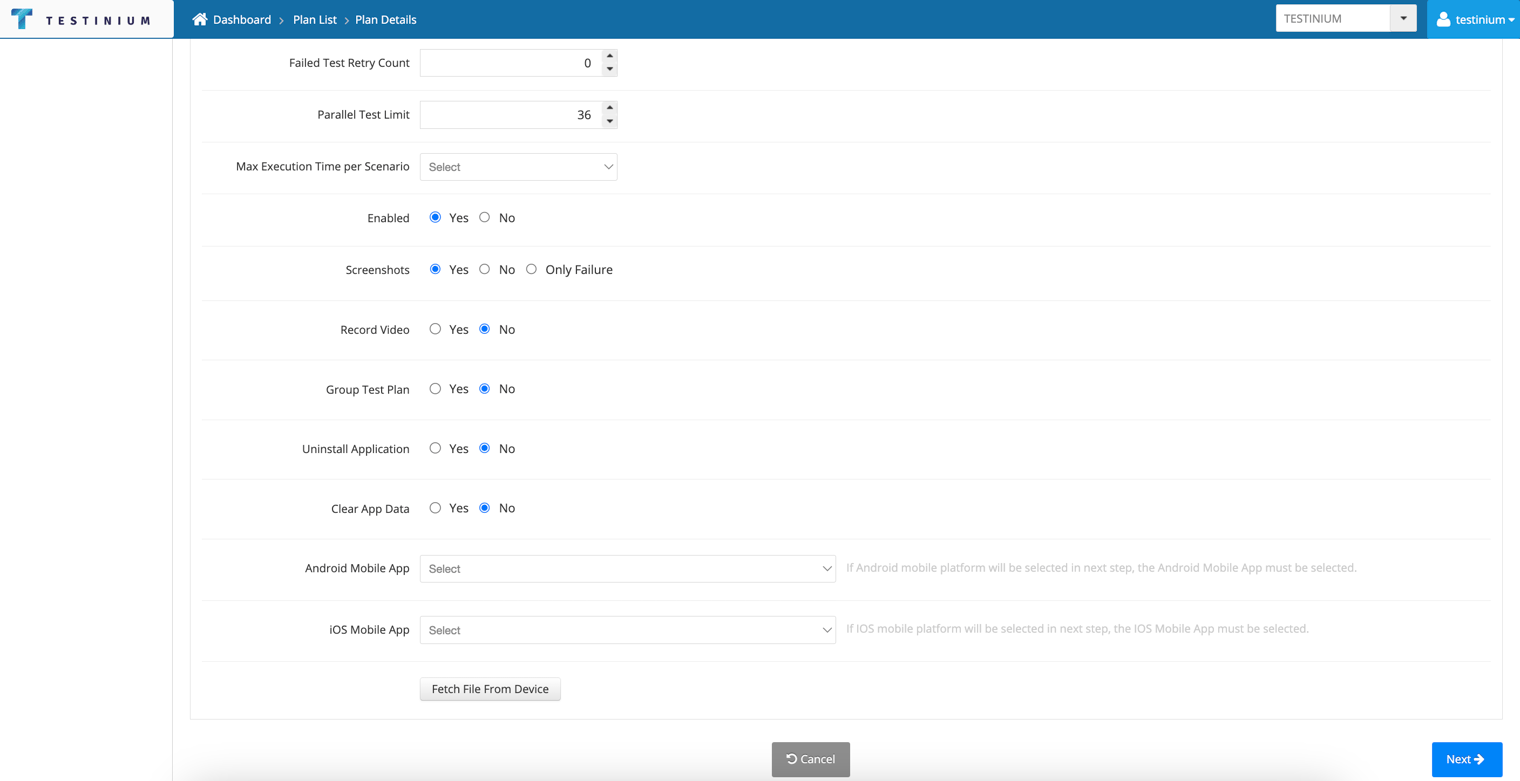

- Failed Test Retry Count (Number of Repetitions on Test Fail)
- Parallel Test Limit
- Max Execution Time per Scenario
- Enabled
- Screenshots
- Record Video
- Capture Performans Data; Displayed in browser tests, not in mobile tests. Reports values such as screens on time
- Group Test Plan; If one of the two Mobile Devices is the Receiver and the Other is the Sender, the group is defined as the plan and the Receiver/Sender is defined as the parameter in the Plan. (Only in mobile environment tests)
- Clear App Data (Only in mobile environment tests)
- Fetch File From Device; In mobile tests, the directory of the log file is given where the log file is almost. (Only in mobile environment tests)
- a. Click Next to continue to the next form screen.
b. Click the Cancel button to cancel the process of adding a new plan.
- The next step depends on the project type;
- If the selected project is a web project (Selenium), Browser Selection screen opens.
- If the selected project is a mobile project (Appium), Mobile Browser Selection screen opens.
- If the selected project is a service project, the Schedule screen opens, which is the next step since no platform selection is made.

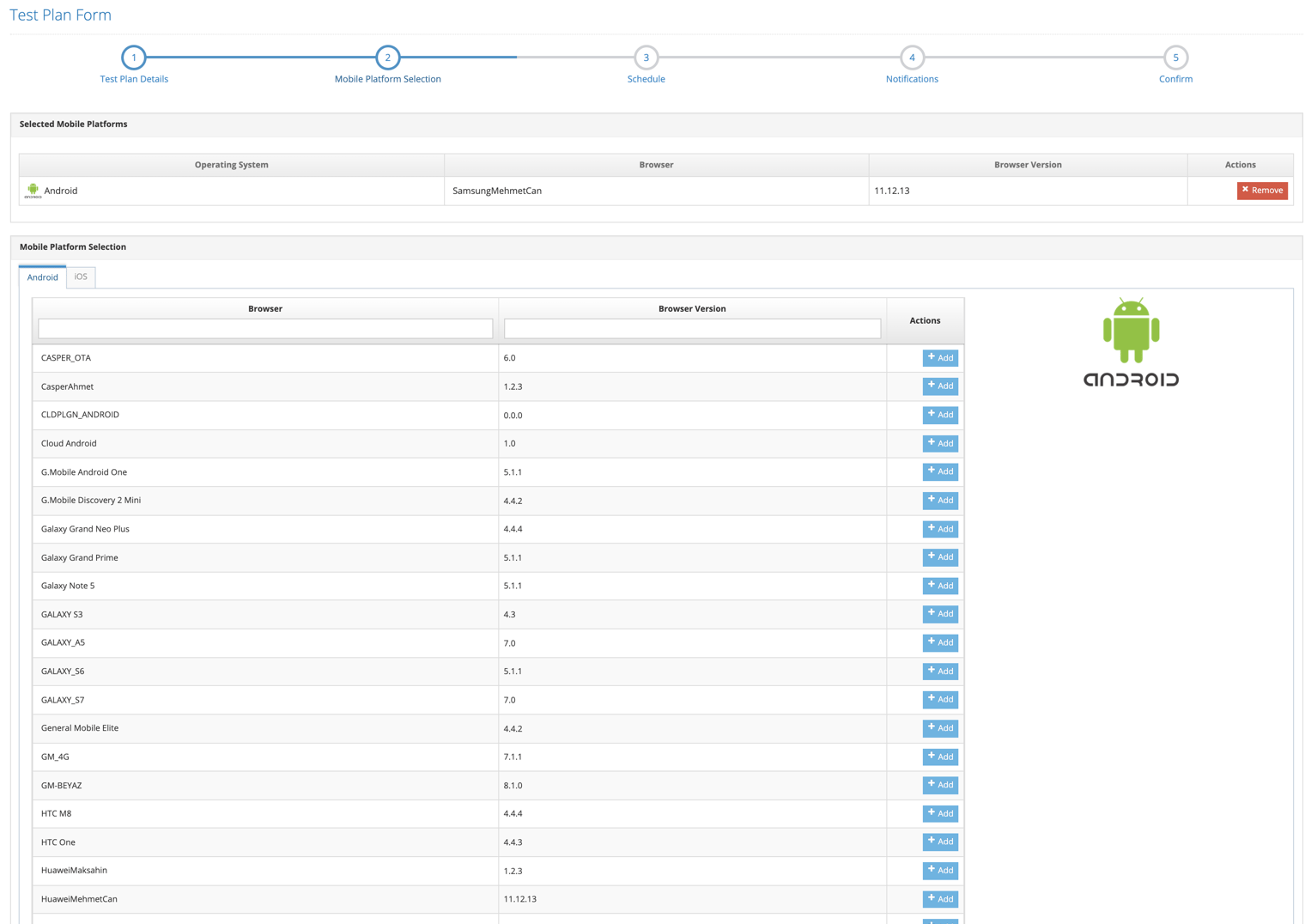

- Enter the following fields on the Mobile Platform Selection/ Platform Selection screen;
- Mobile Platform Selection (Browser/Browser Version by clicking the Add button)
- Platform Selection (Screen Resolutions/Browser Selection by clicking the Add button)
- a. Click the Next button and go to the Schedule tab.
b. Click the Back button to return Test Plan Details tab.
c. Click the Cancel button to cancel the plan definition process.

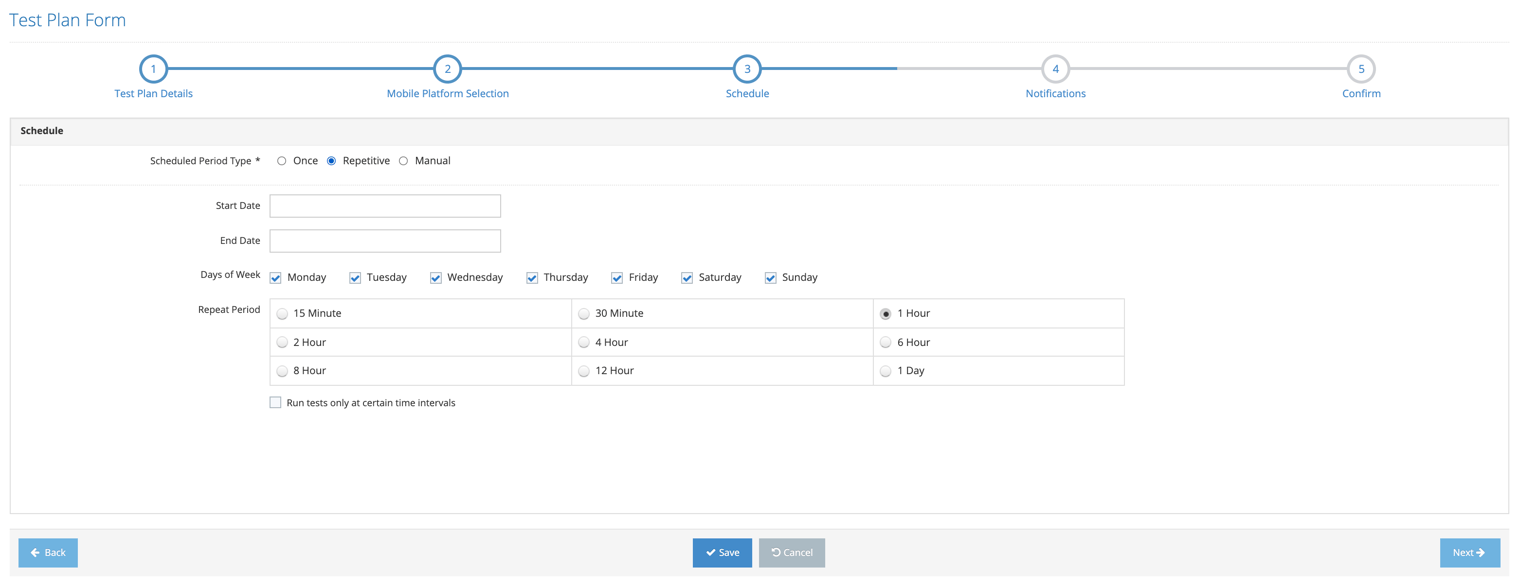

- Select Scheduled Period Type on the Scheduled screen and enter the required fields;
- Select Once if it is a one-time test plan and enter the Start Date.
- Select Repetitive tab if a repetitive test plan is desired and enter Start Date, Finished Date, Days of Week and Repeat Period fields on the screen that opens.
- Select Manual option if the plan will be run manually.
- a. Click the Next button and go to the Notifications tab.
b. Click the Back button to return Platform Selection tab.
c. Click the Cancel button to cancel the plan definition process.

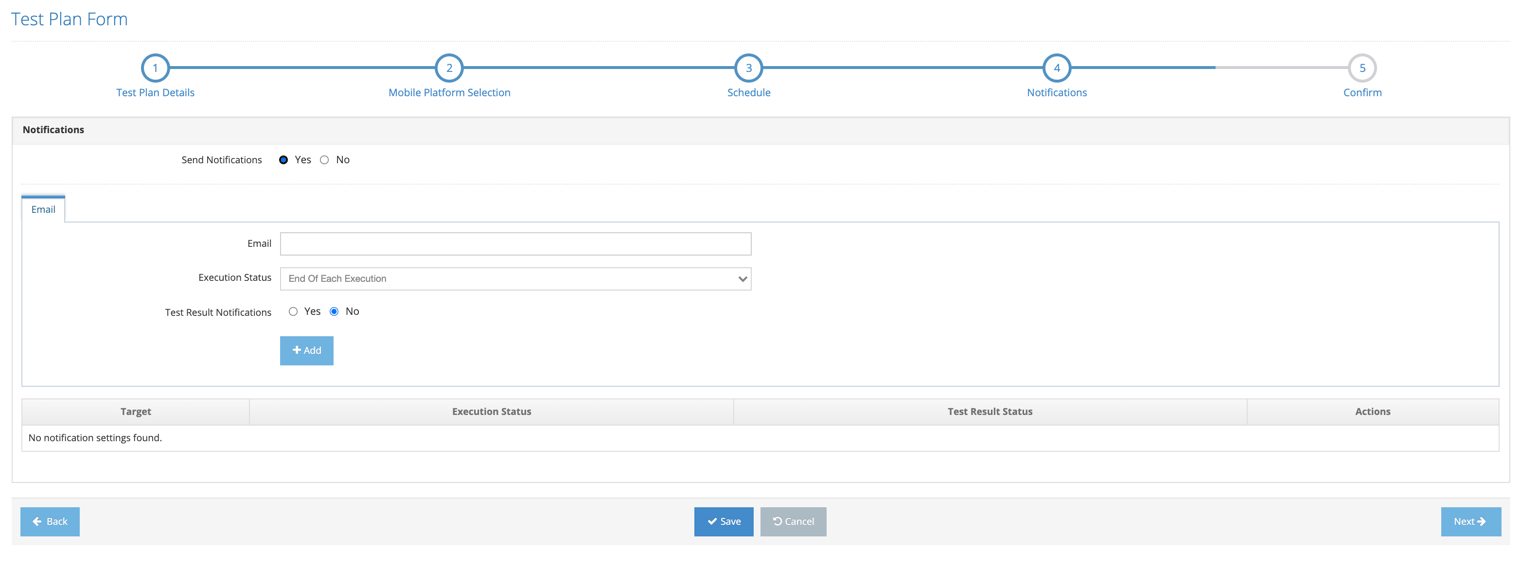

- The Notification tab opens, where users are notified according to the specified criteria. The following fields are entered in this tab;
- Send Notification (Send Notification Active / Inactive)
- Execution Status (When to send a notification during execution)
- Test Result Notification (Test Result Notification - Scenario X Browser/Phone means sending a notification as a result of the test)
- Test Result Status (When to send notification of the test result)
- a. Click the Next button and go to the Confirm tab.
b. Click the Back button to return Schedule tab.
c. Click the Cancel button to cancel the plan definition process.

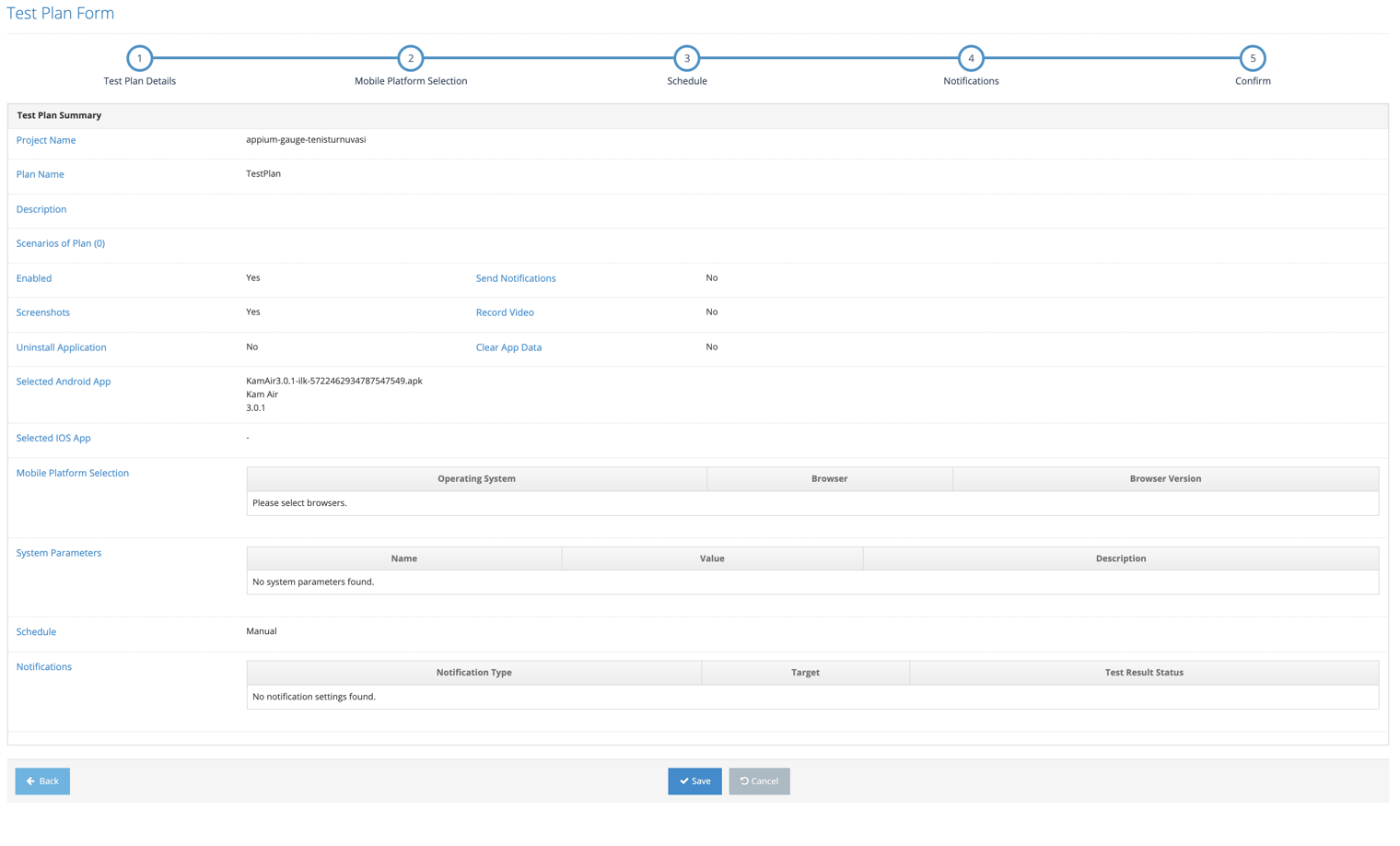

- On the Confirm screen that opens, the system displays a summary of all the information in the tabs previously entered.
- a. Click the Save button to save new plan.
b. Click the Back button to return Notifications tab.
c. Click the Cancel button to cancel the plan definition process.
