Testinium Cloud

9 min

The requirements for Testinium Cloud integration are as follows;

A. Operations in Companies module; Adding Testinium Cloud as a plugin

B. Operations on the Company Details screen; Setting Testinium Cloud settings for the relevant company

C. Operations in System Setting module; Cloud test environment group creation

D. Procedures during the test run; Plan settings

E. Test Run Results; Test results display in Testinium Enterprise and Testinium Cloud

A. Operations in Companies Module

Plugin settings must first be made for the relevant company in Testinium Cloud integration.

Plugin settings must be made by the system admin.

The following steps should be followed for plugin settings;

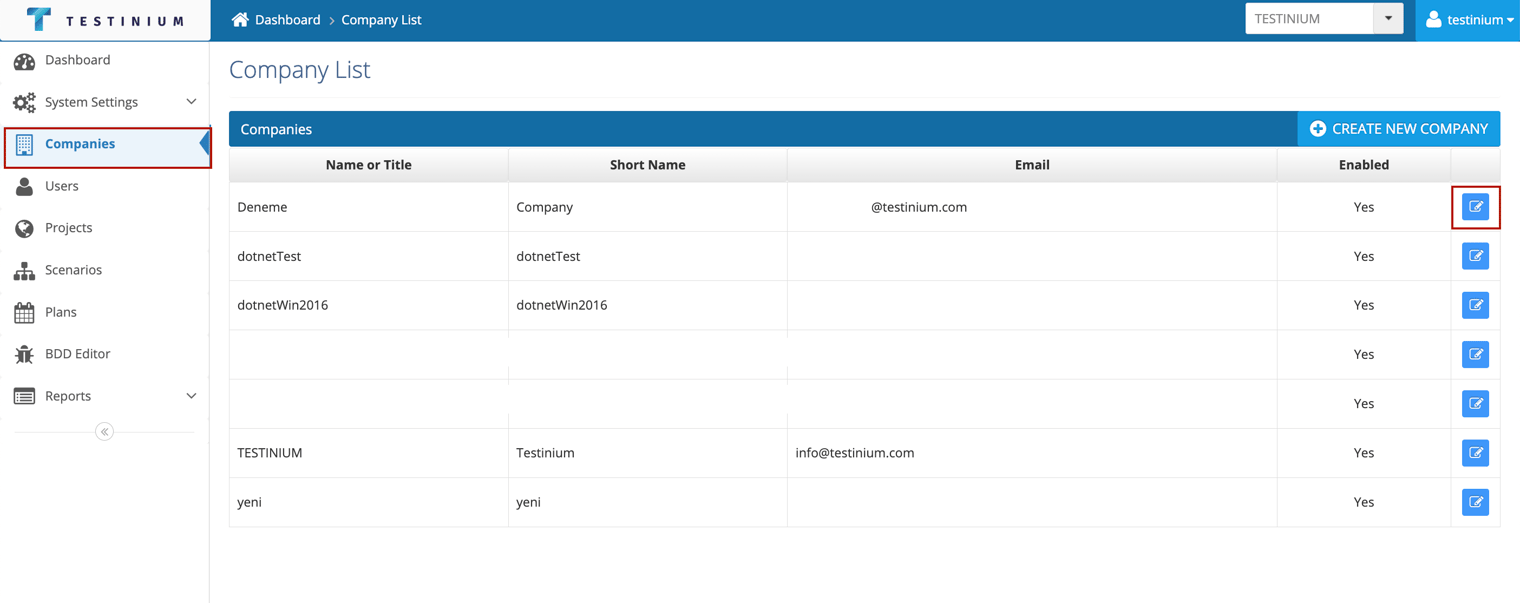

Open Companies module.

Click Edit button for the related company.

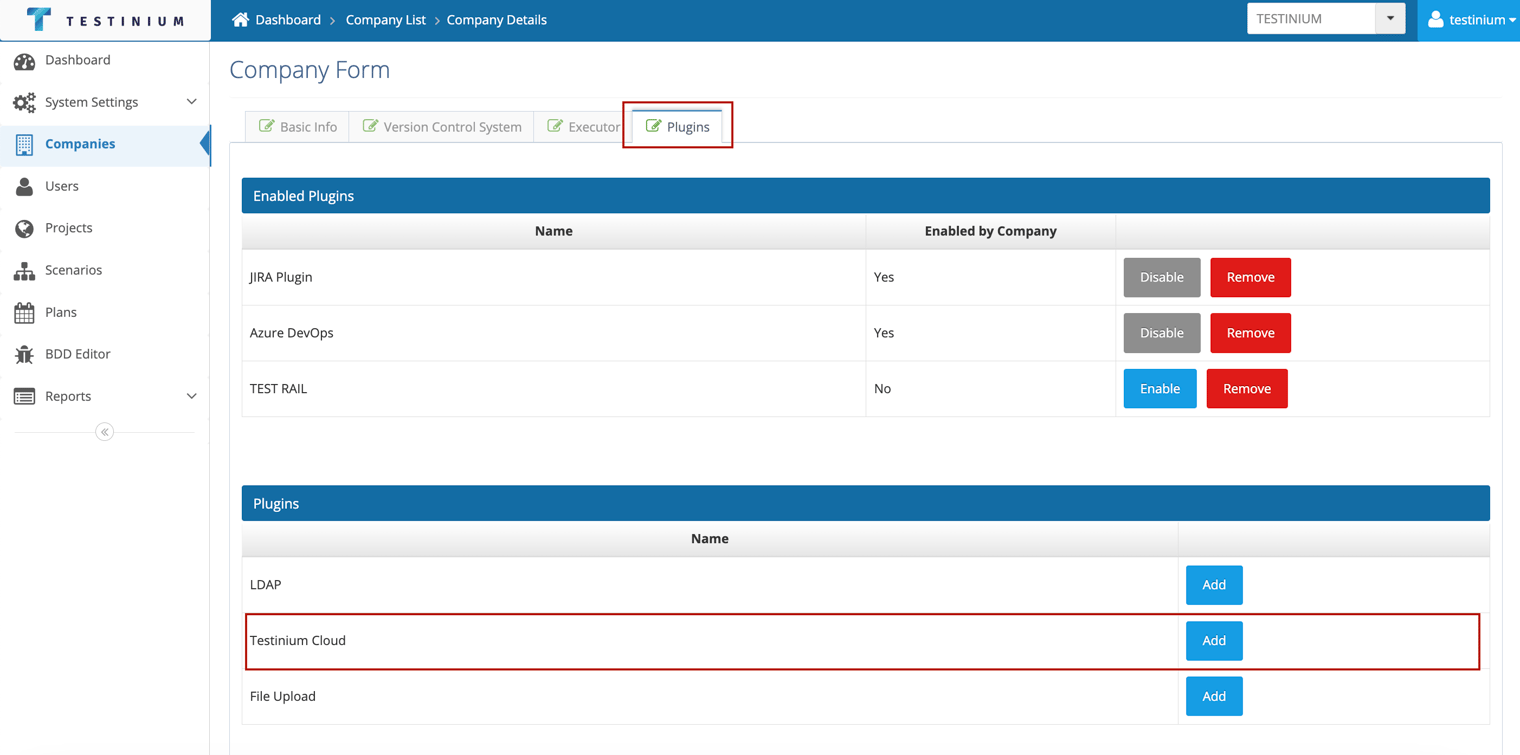

Click on Plugin tab.

Testinium Cloud plugin is moved from Plugin list to Enable Plugin list by clicking Add button.

a. Click to Save button to save plugin setting.

b. Click the Cancel button to cancel plugin adding.

B. Operations in Company Details

Connection settings of the company for Testinium Cloud integration are made in this step.

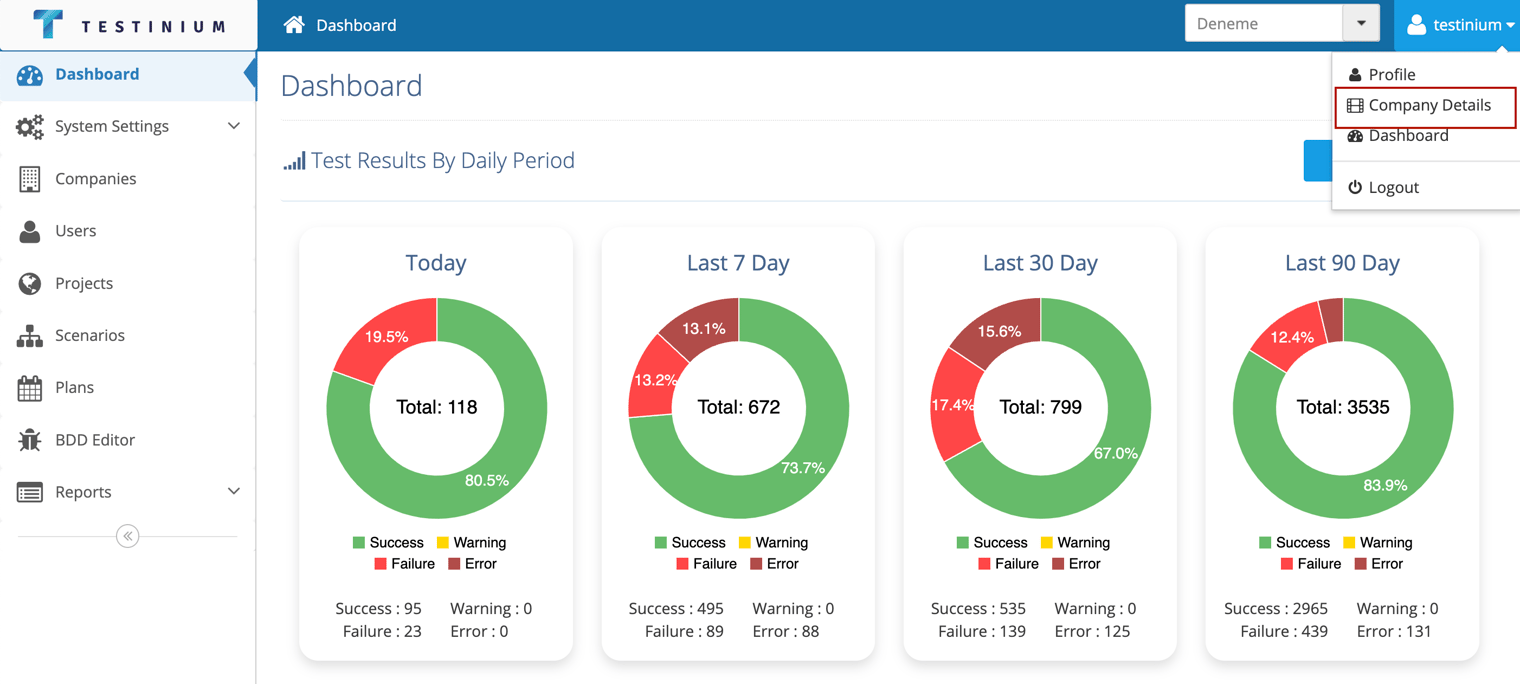

Open the Company Details screen from the menu in the upper right corner.

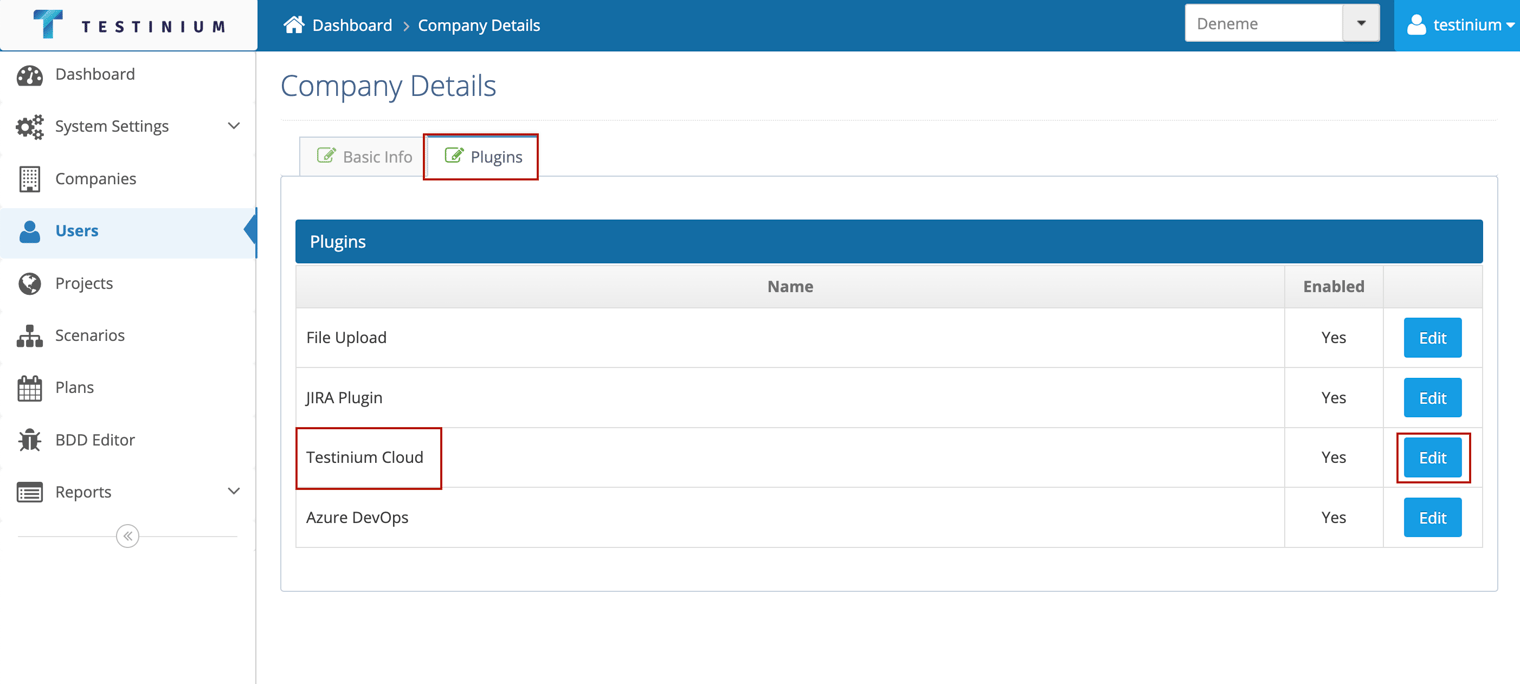

Click on the Plugin tab.

Click the Edit button in the Testinium Cloud section.

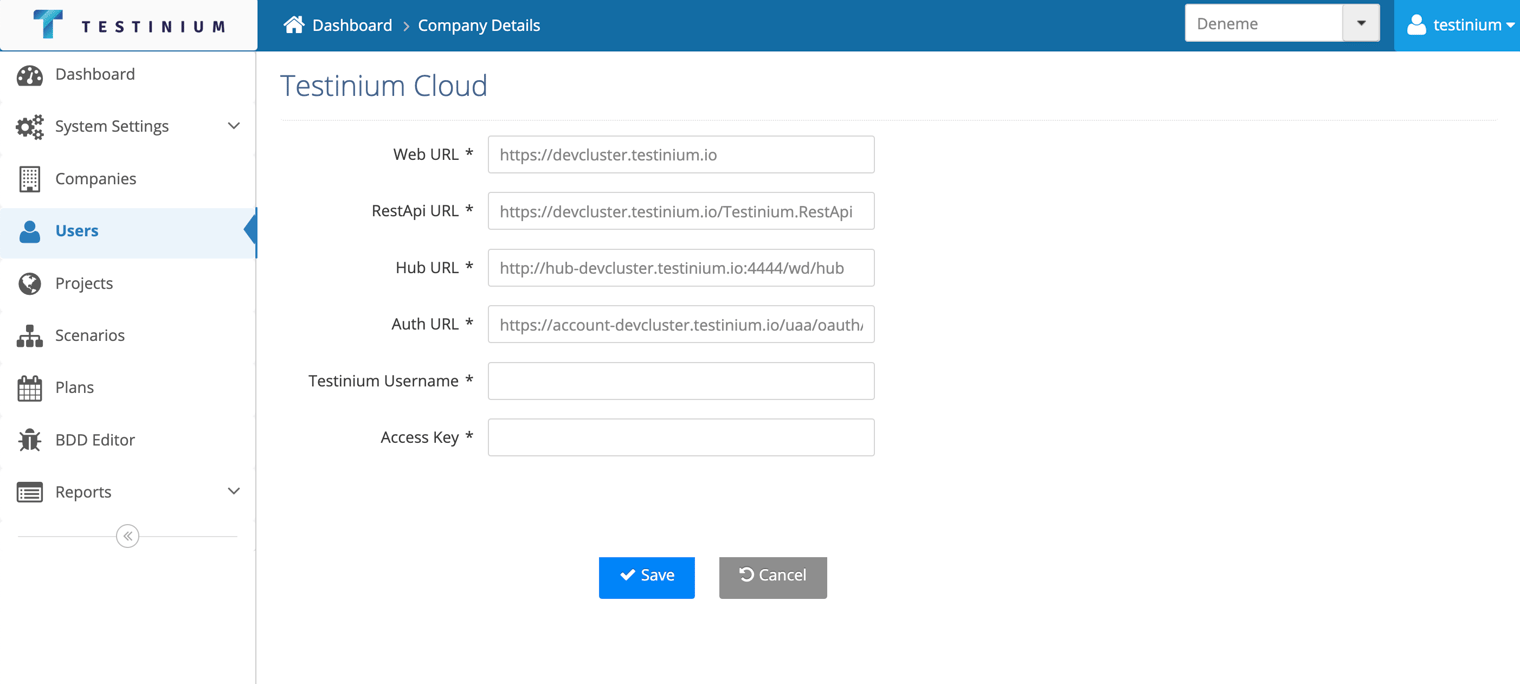

Enter the following fields on the screen that opens;

Web URL (https://testinium.io )

RestApi URL (https://testinium.io/Testinium.RestApi/ )

Hub URL ( http://hub.testinium.io/wd/hub )

Auth URL ( https://account.testinium.com/uaa/oauth/token )

Testinium Username

Access Key

Testinium Username and Access Key information is retrieved from the testinium.io web page.Web URL, RestApi URL , Hub URL and Auth URL are filled from the default values specified in parentheses.

a. Click to Save button to save plugin connection information.

b. Click the Cancel button to cancel the process.

C. Operations in System Settings

Environment grouping must be done for Testinium Cloud integration. This step describes these processes.The following steps are followed for the grouping process;

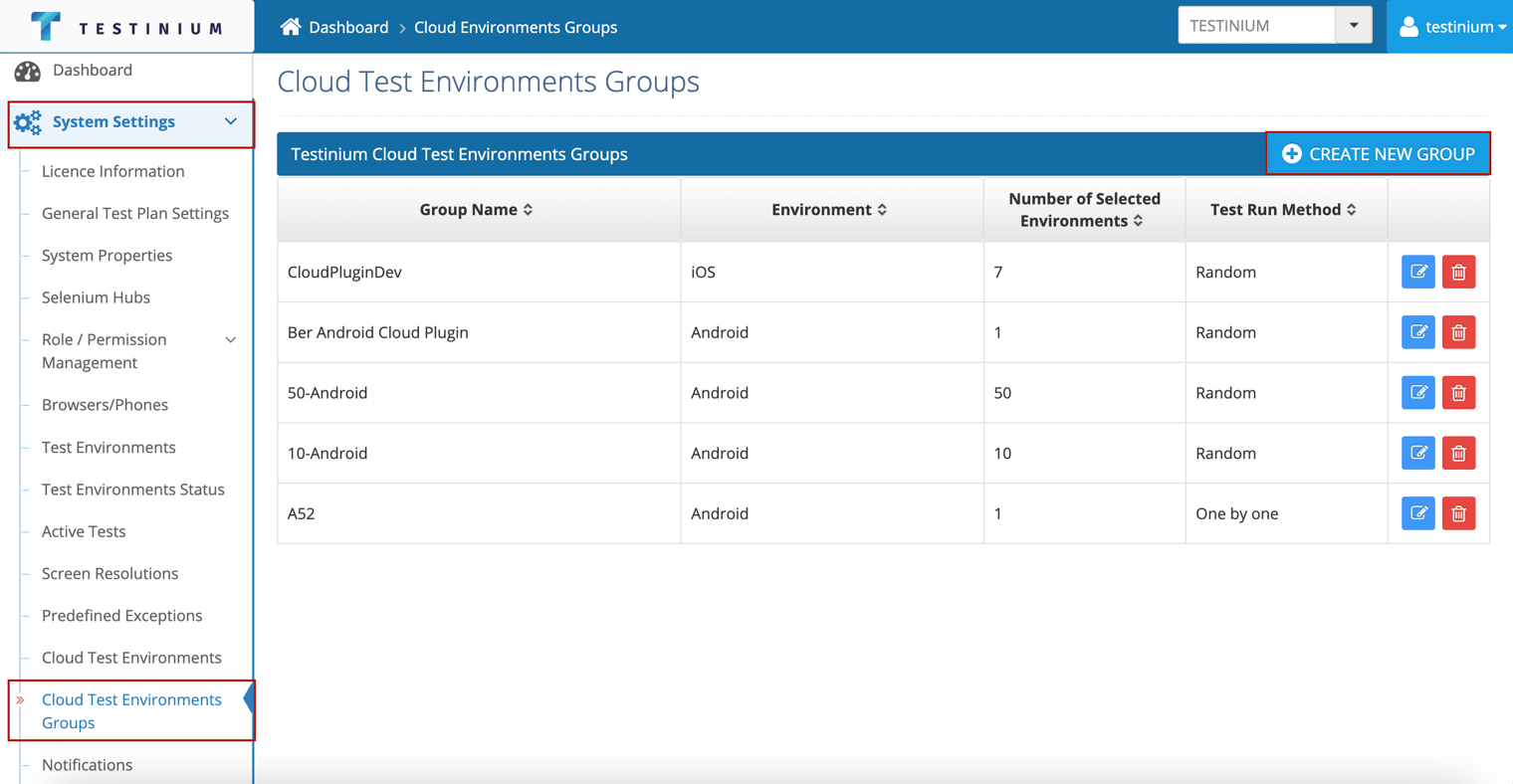

Open the Cloud Test Environments screen in the System Setting module.

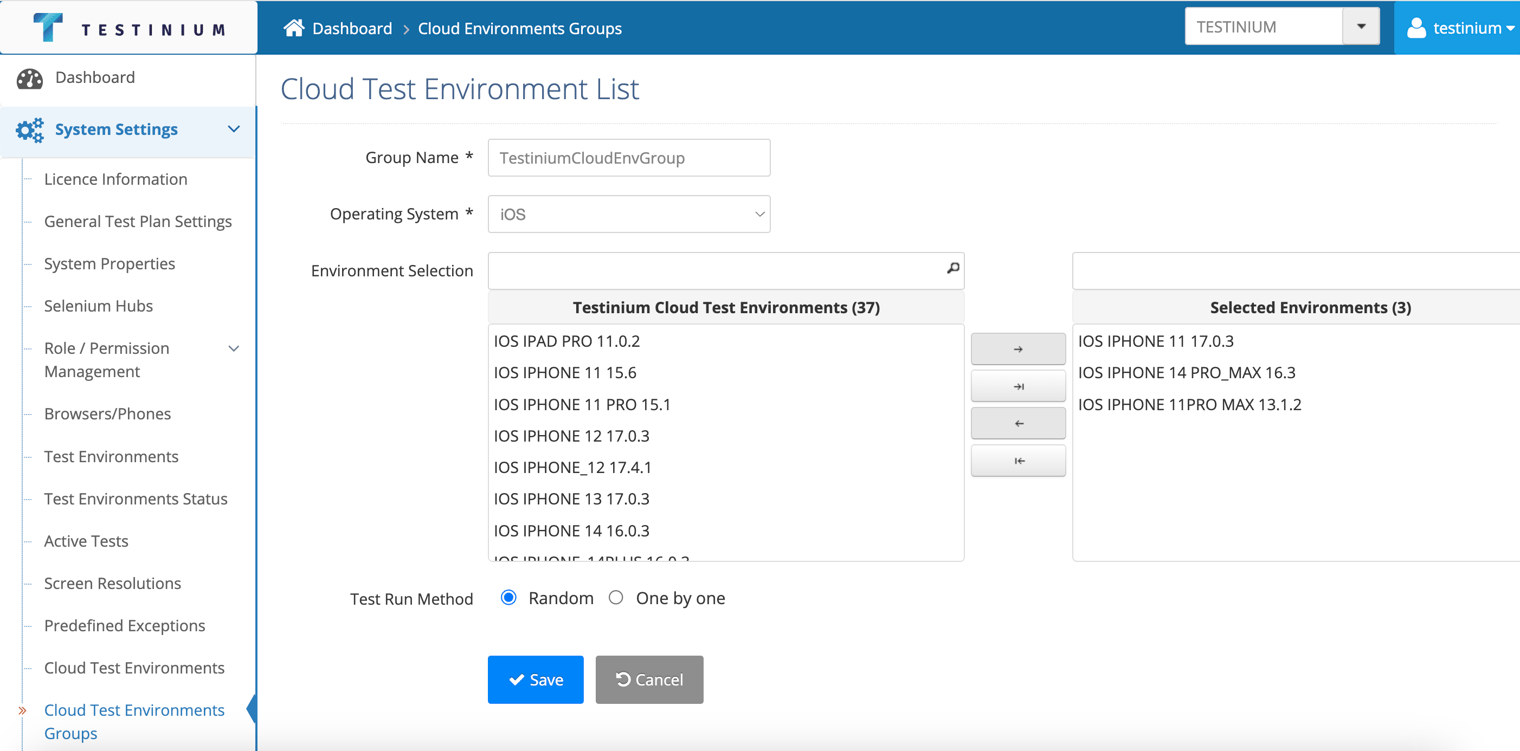

Click the Create New Group button.

Enter the group name.

Select Operating System.

Create a group by moving the environments in the Testinium Cloud Test Environments list to the Selected Environments list with arrows.

Select Test Run Method (random or one by one).

a. Click to Save button to the group.

b. Click the Cancel button to cancel the process.

D. Procedures during the test run

The steps to be performed in the test plans for Testinium Cloud integration during test runs are as follows;

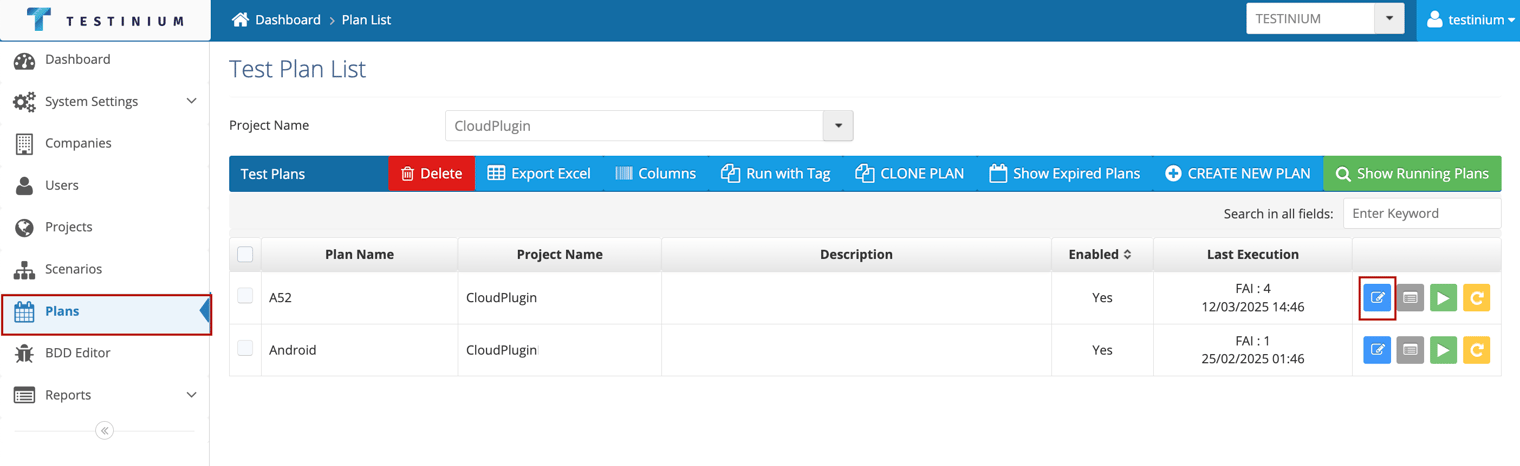

Open the Plans screen and select the project.

Click the Edit button on the scenario line to run.

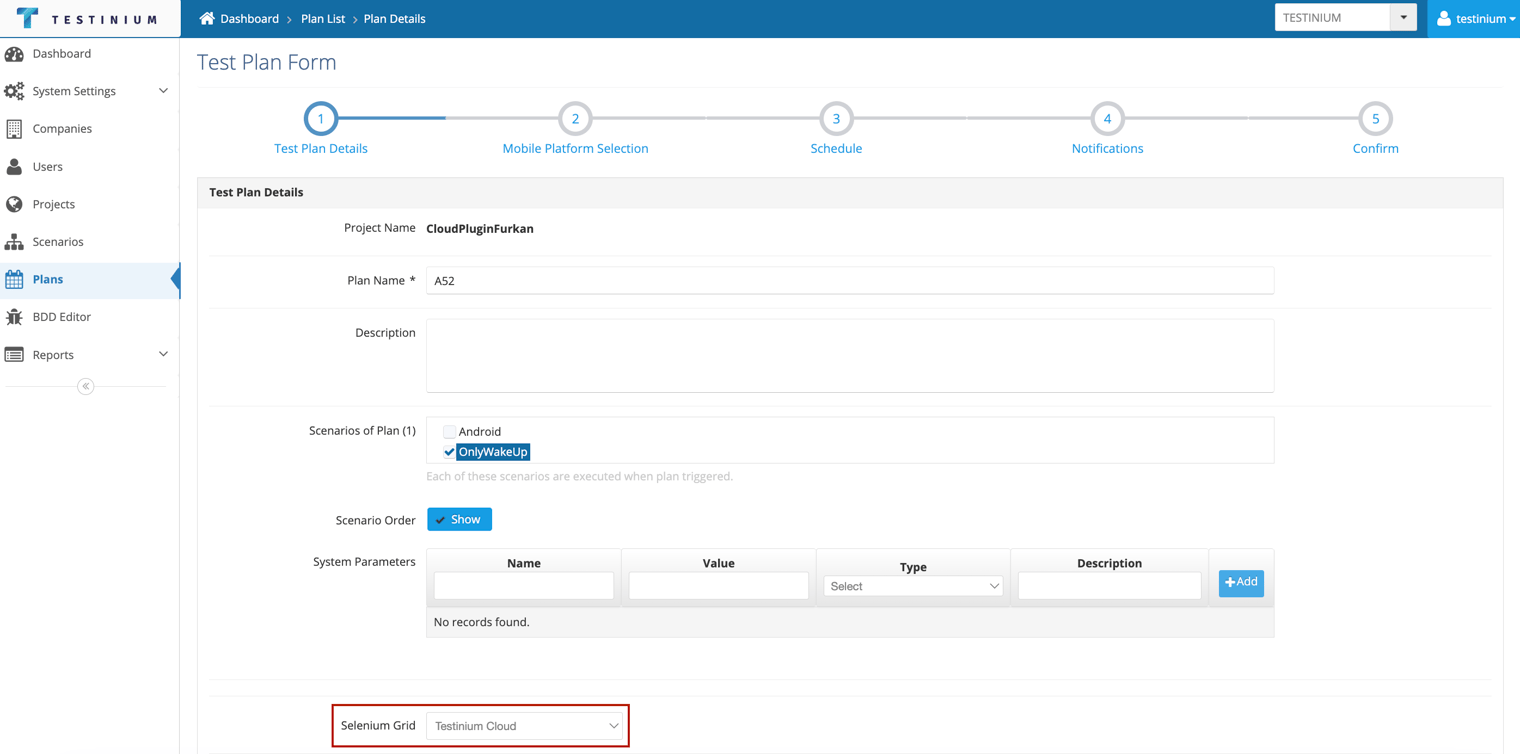

Select Testinium Cloud in the Selenium Grid field in the Test Plan Details step on the Test Plan Details screen.

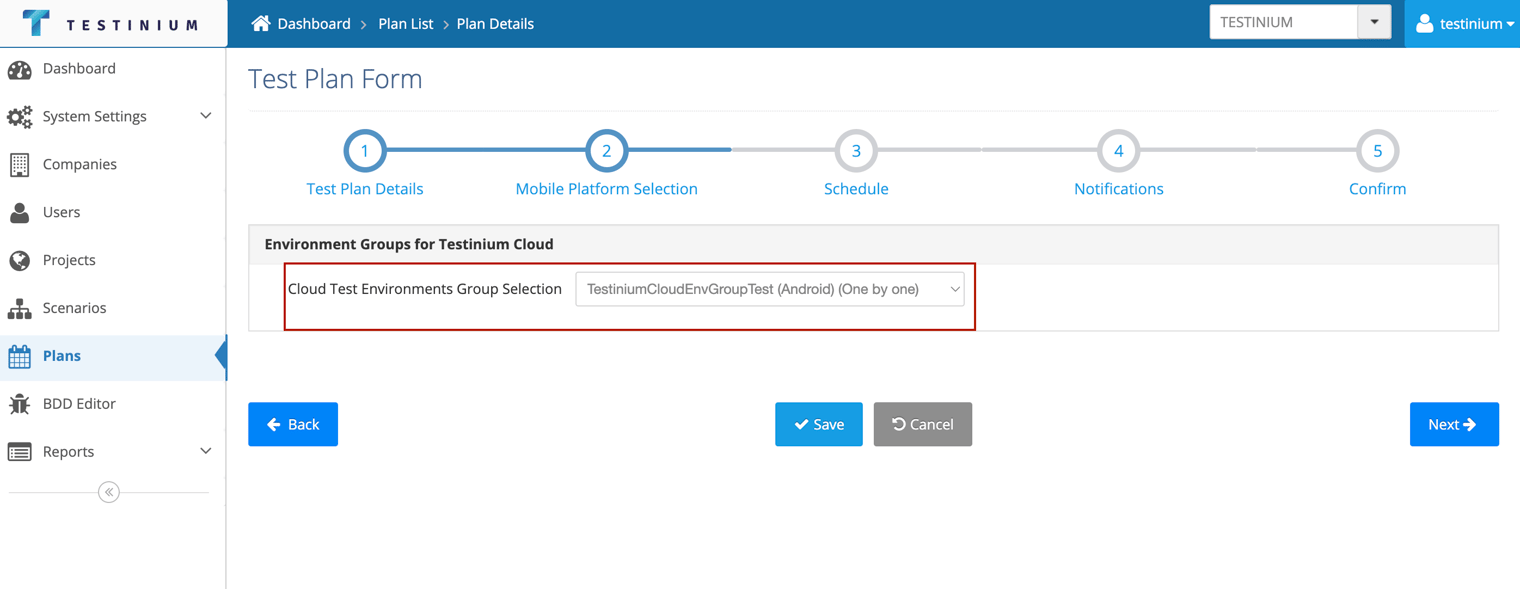

Select the group from the Cloud Test Environment Group Selection field (explained how to create it in the previous title) in the next step, Mobile Platform Selection.

Save the plan after making any other necessary edits to the plan.

Run the test plan.

E. Test Run Results

The tests run in Testinium Enterprise can be viewed in all reports (Test Executions, etc.) in Testinium Enterprise.

The following steps are followed to view the relevant test execution results in Testinium Cloud;

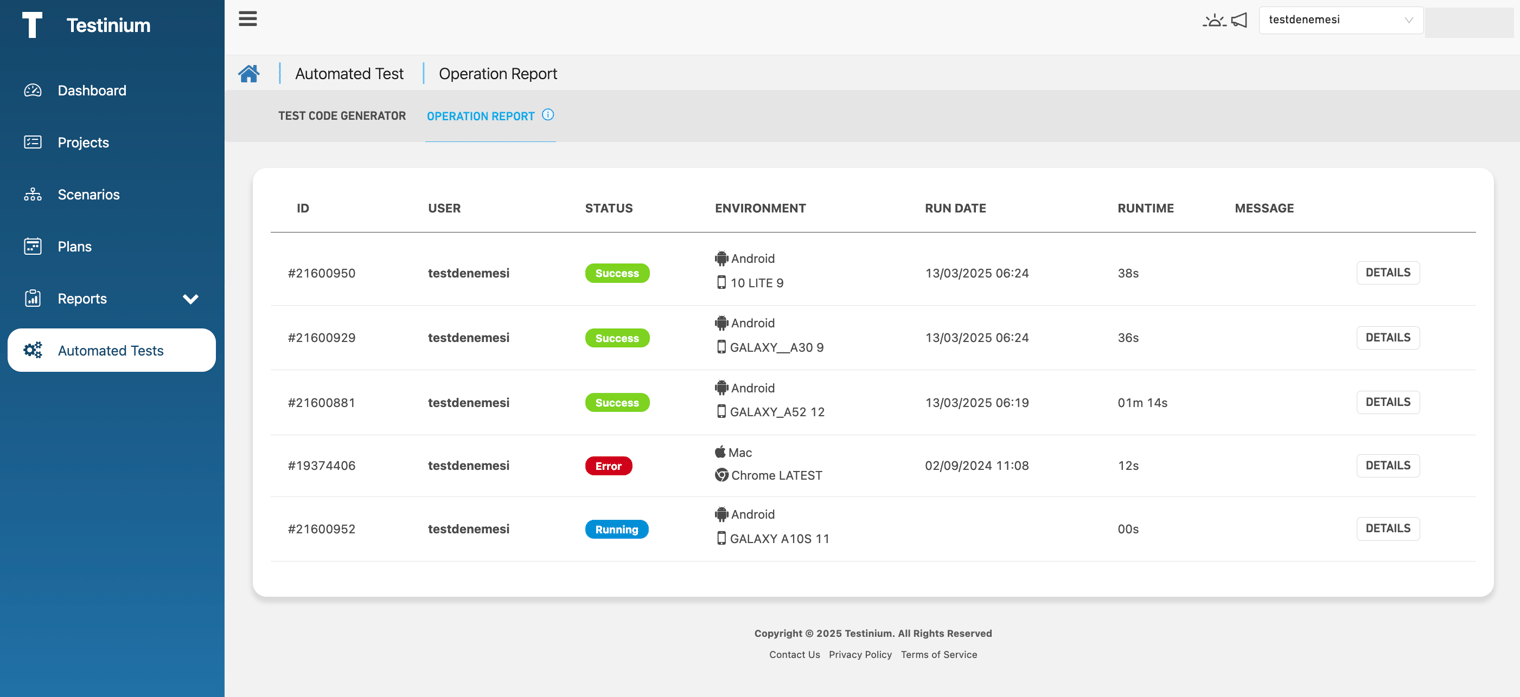

Open the Automated Tests screen.

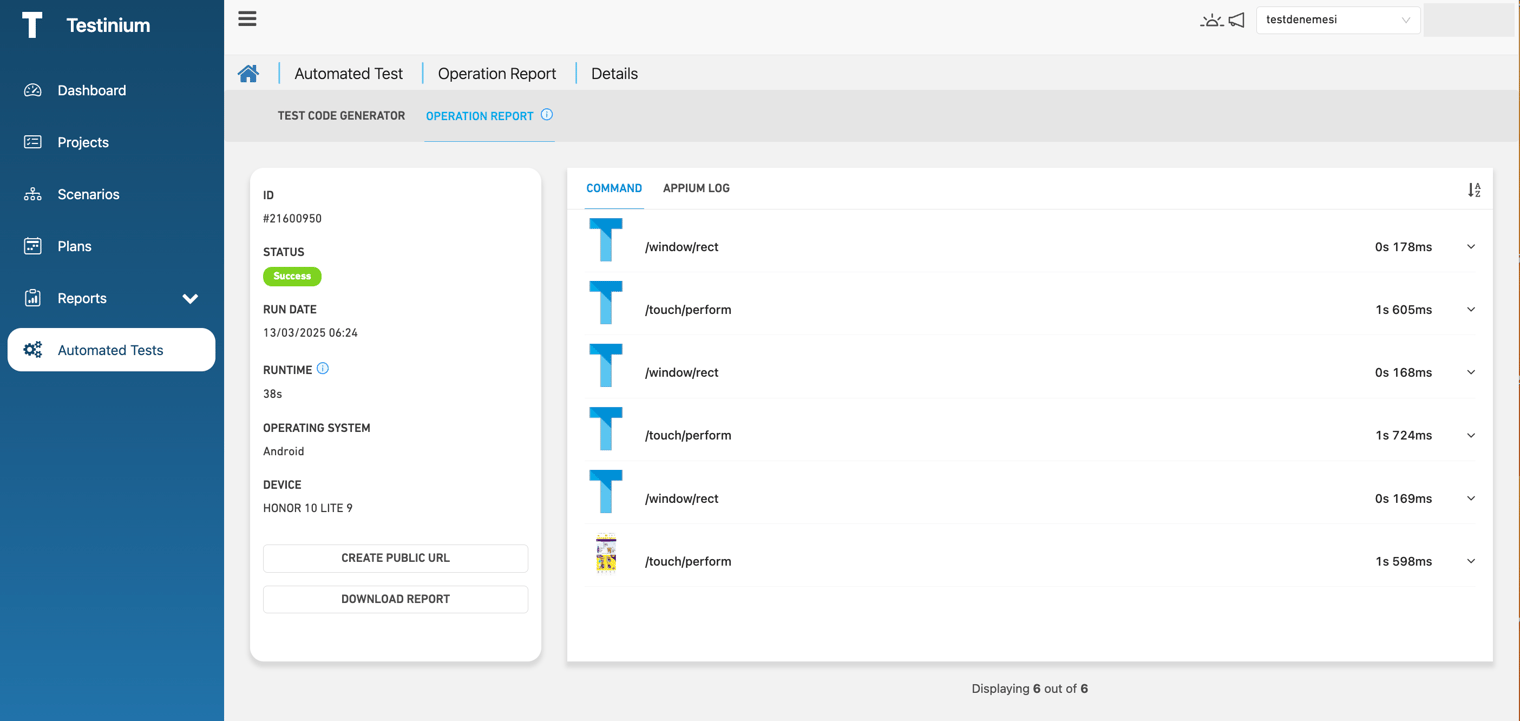

Click on the Operation Report tab. Test results run in Testinium Enterprise are listed in this tab.

Click the Details button on the relevant test result for test result details.
