Azure Devops Board

9 min

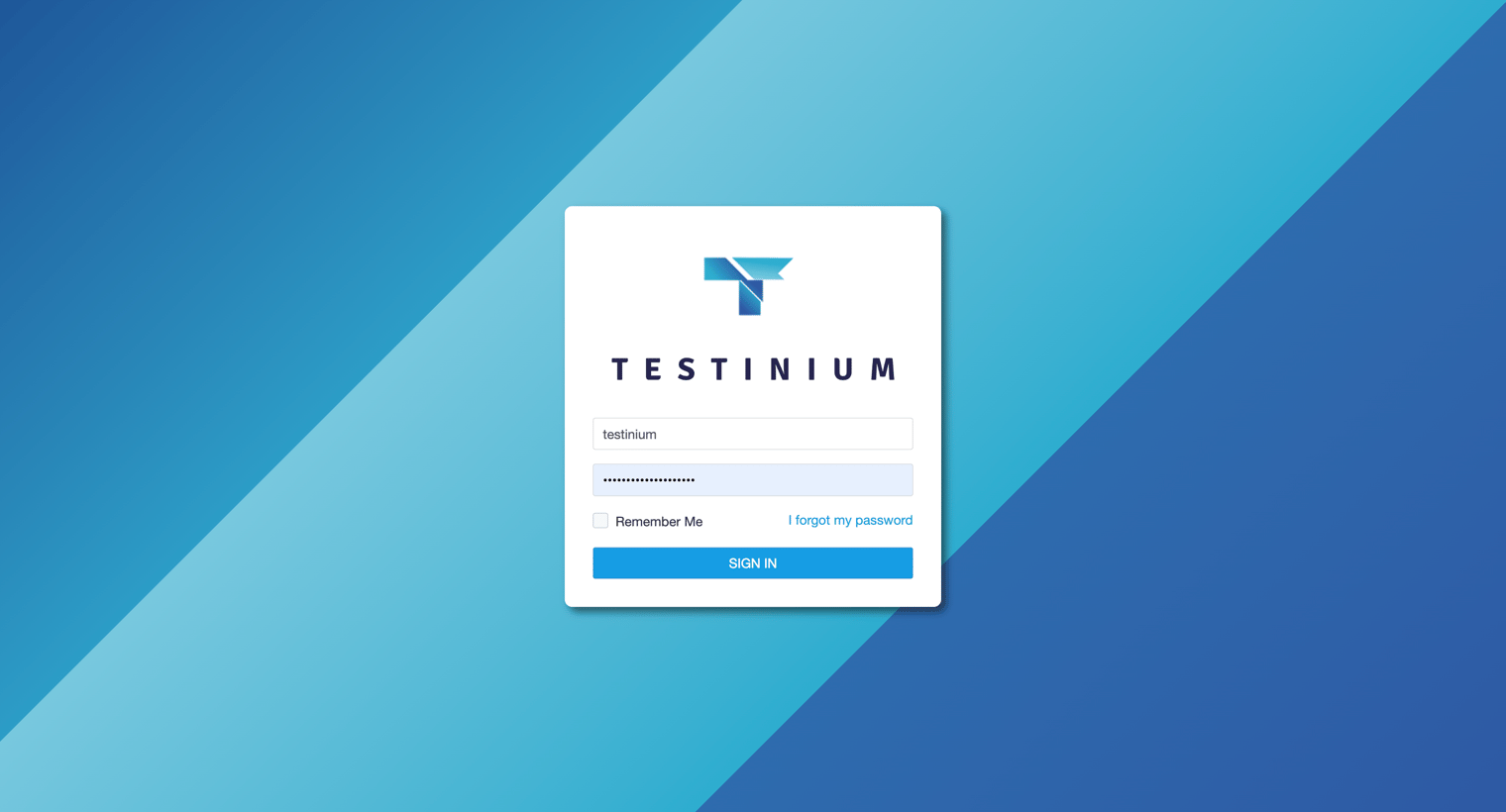

Fill in the following fields on the displayed screen:

Username

Password

Click the Sign In button.

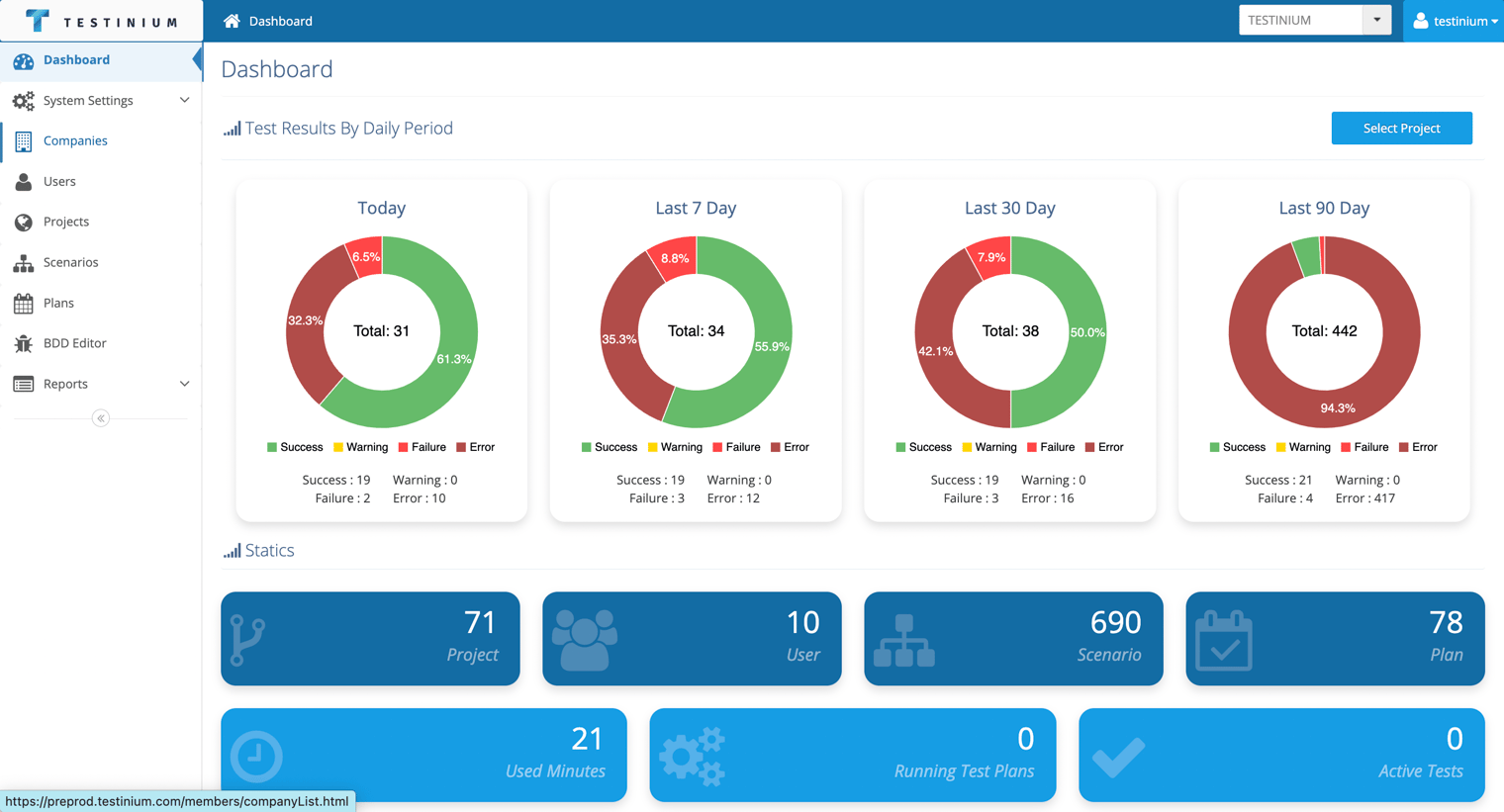

The Azure DevOps Board plugin must be added as a plugin to the selected Company. After logging in, navigate to the Companies page from the left sidebar on the Dashboard screen.

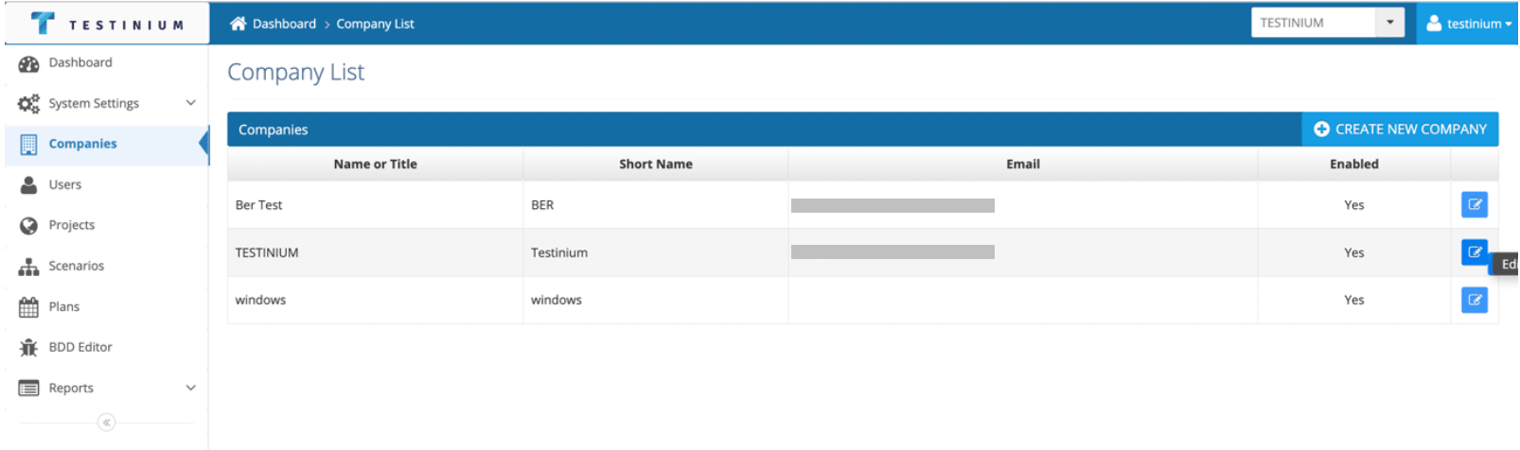

On the Company Listing page, click the Edit button for the company where the plugin will be integrated.

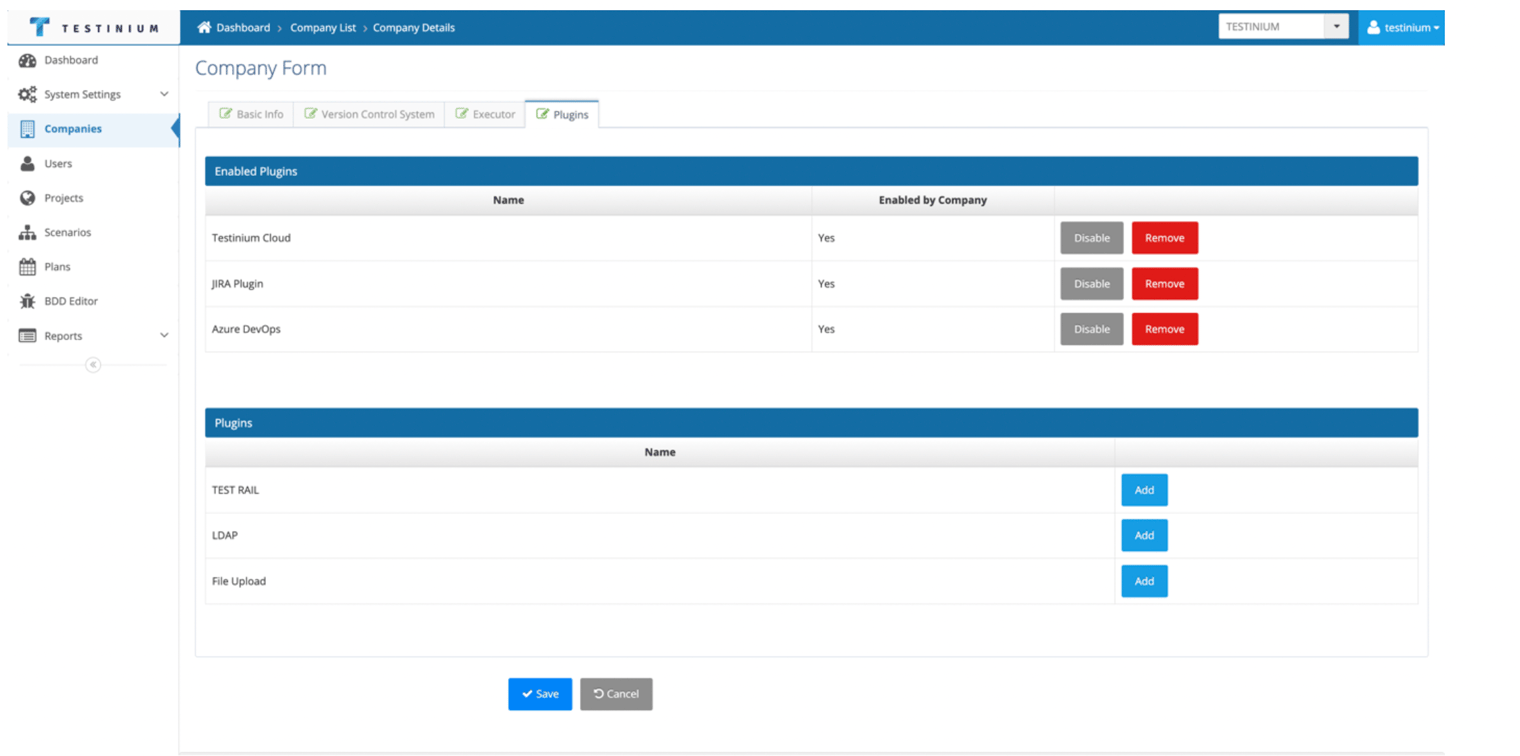

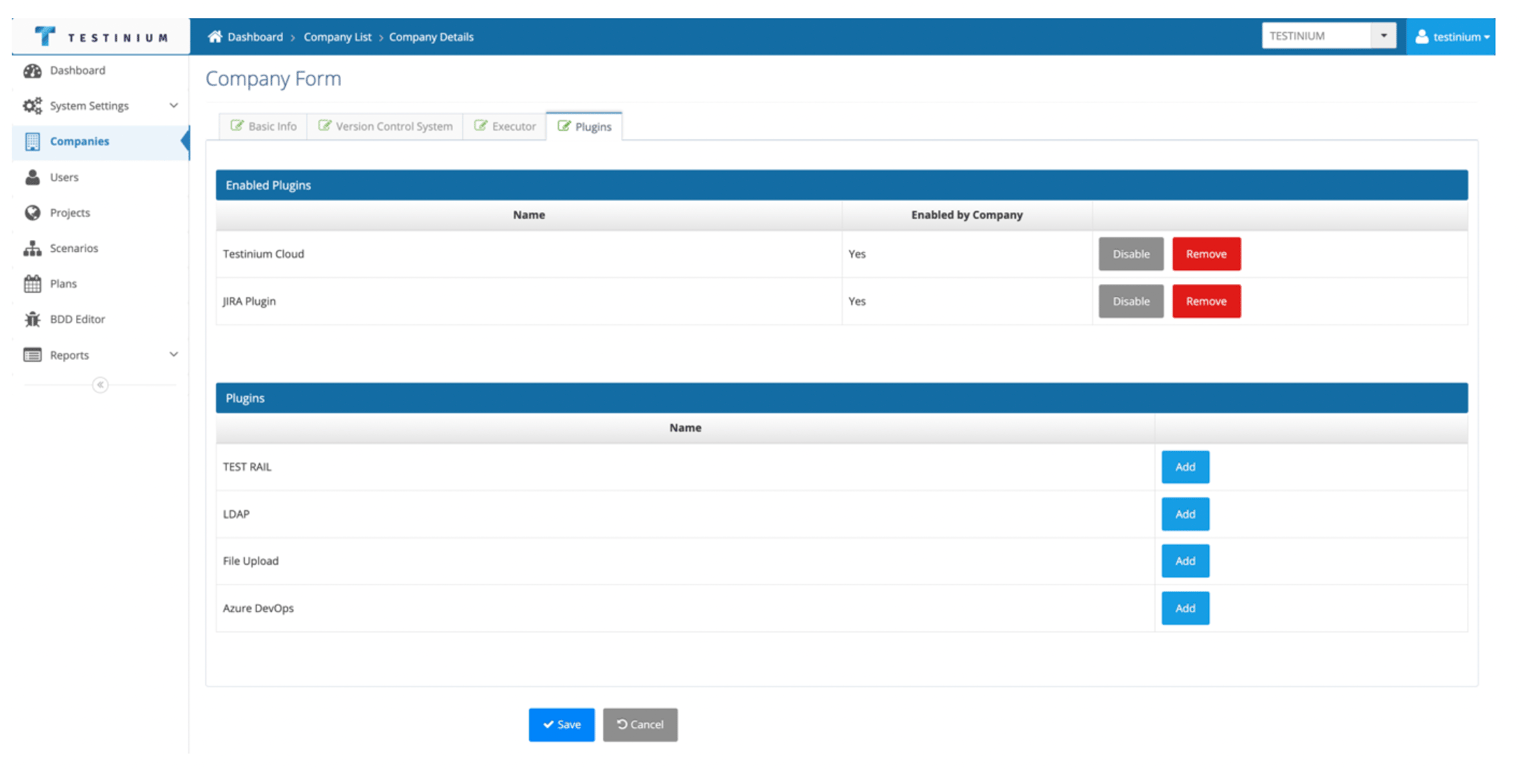

On the displayed screen, navigate to the Plugin page for the selected Company.

From the listed plugins, select Azure DevOps and click the Add button.

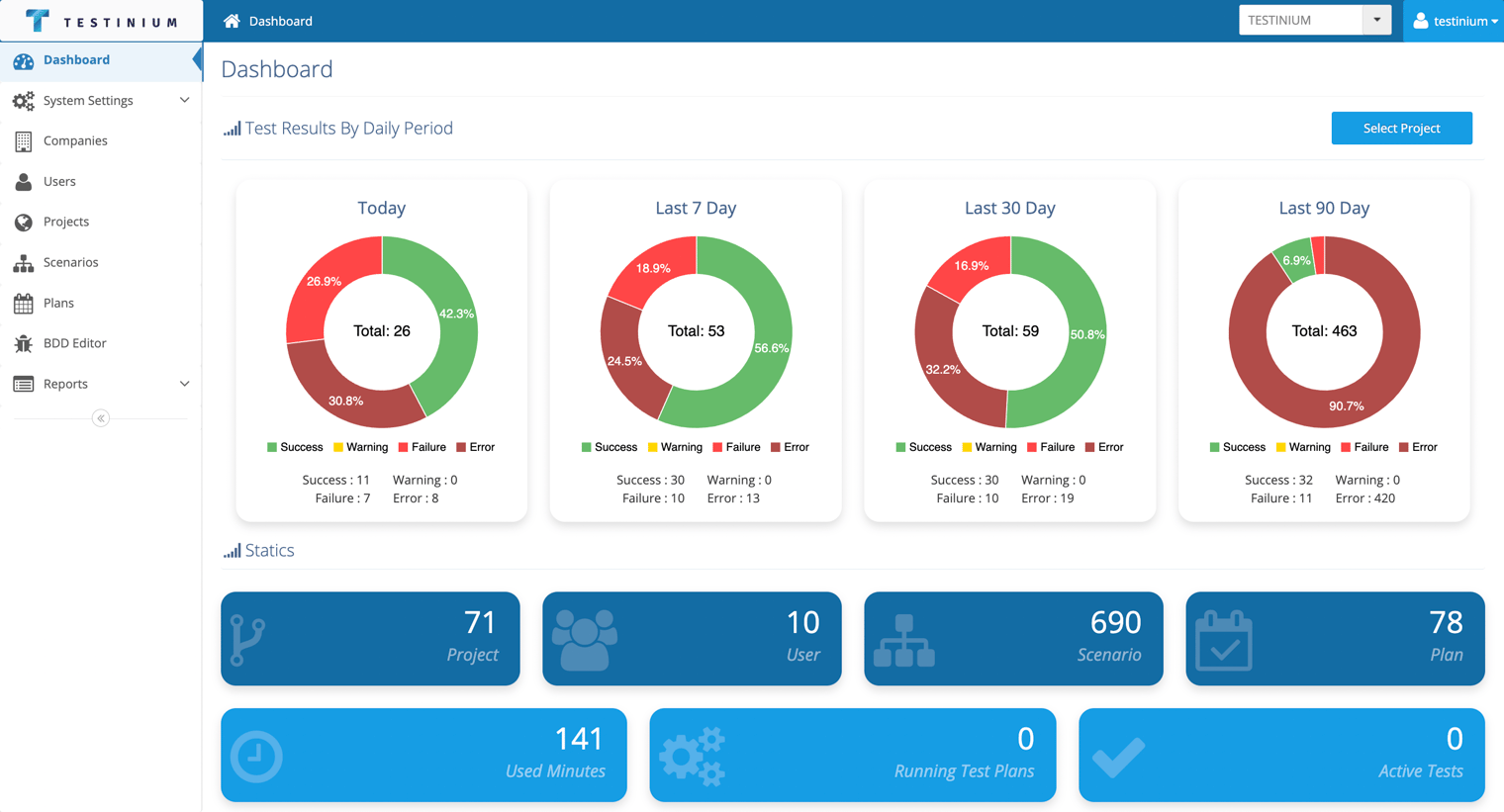

After the plugin is added to the system, Azure DevOps Board account settings must be configured. Click on the Testinium user in the top right corner of the Dashboard, then select Company Details.

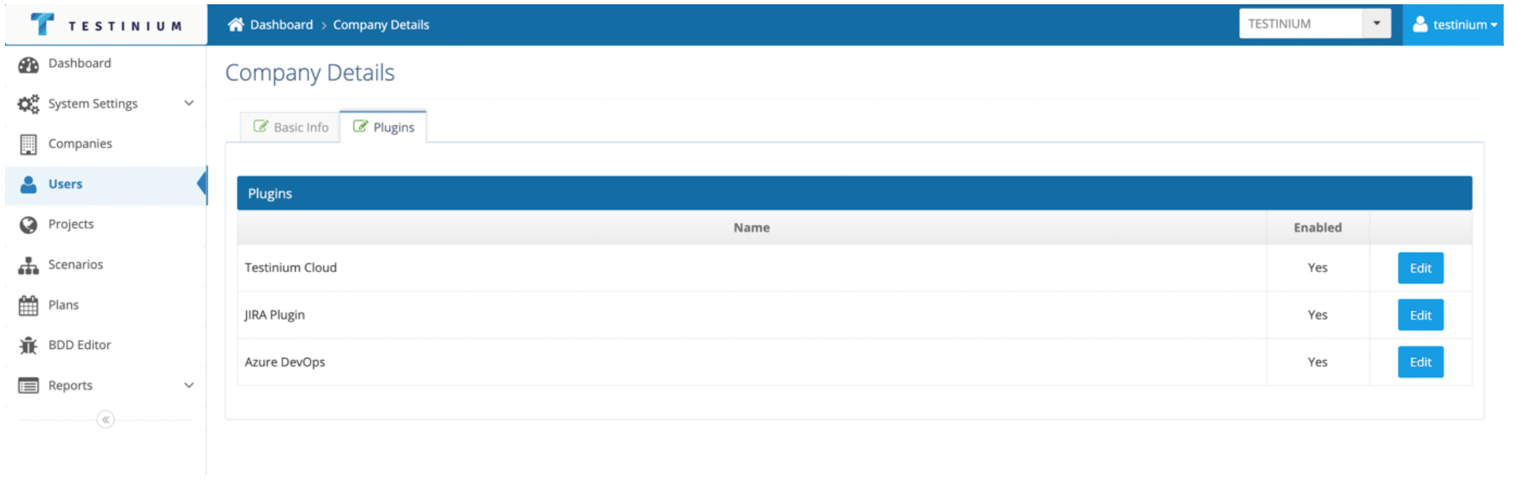

On the Company Details page, click on the Plugins page to configure the Azure DevOps Board account settings.

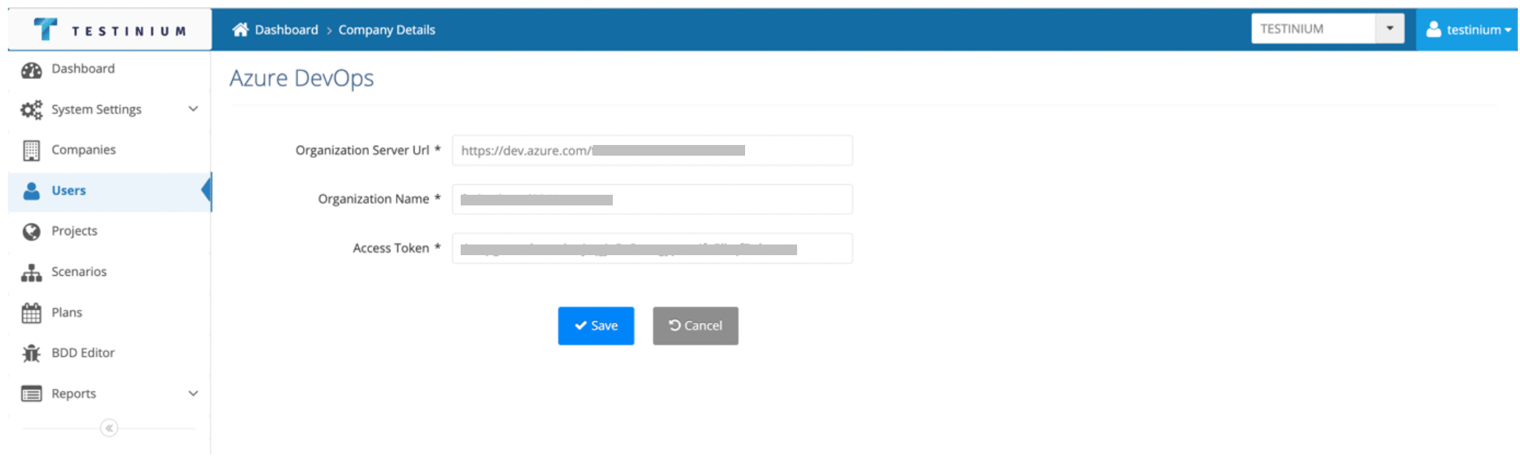

From the listed plugins, select Azure DevOps and click the Edit button.On the displayed page, fill in the following details:

Organization Server URL (Azure DevOps Board Link)

Access Token

Organization Name

For Azure DevOps integration in Testinium, a token must be generated from the Organization Server URL page

Navigate to the Organization Server URL.

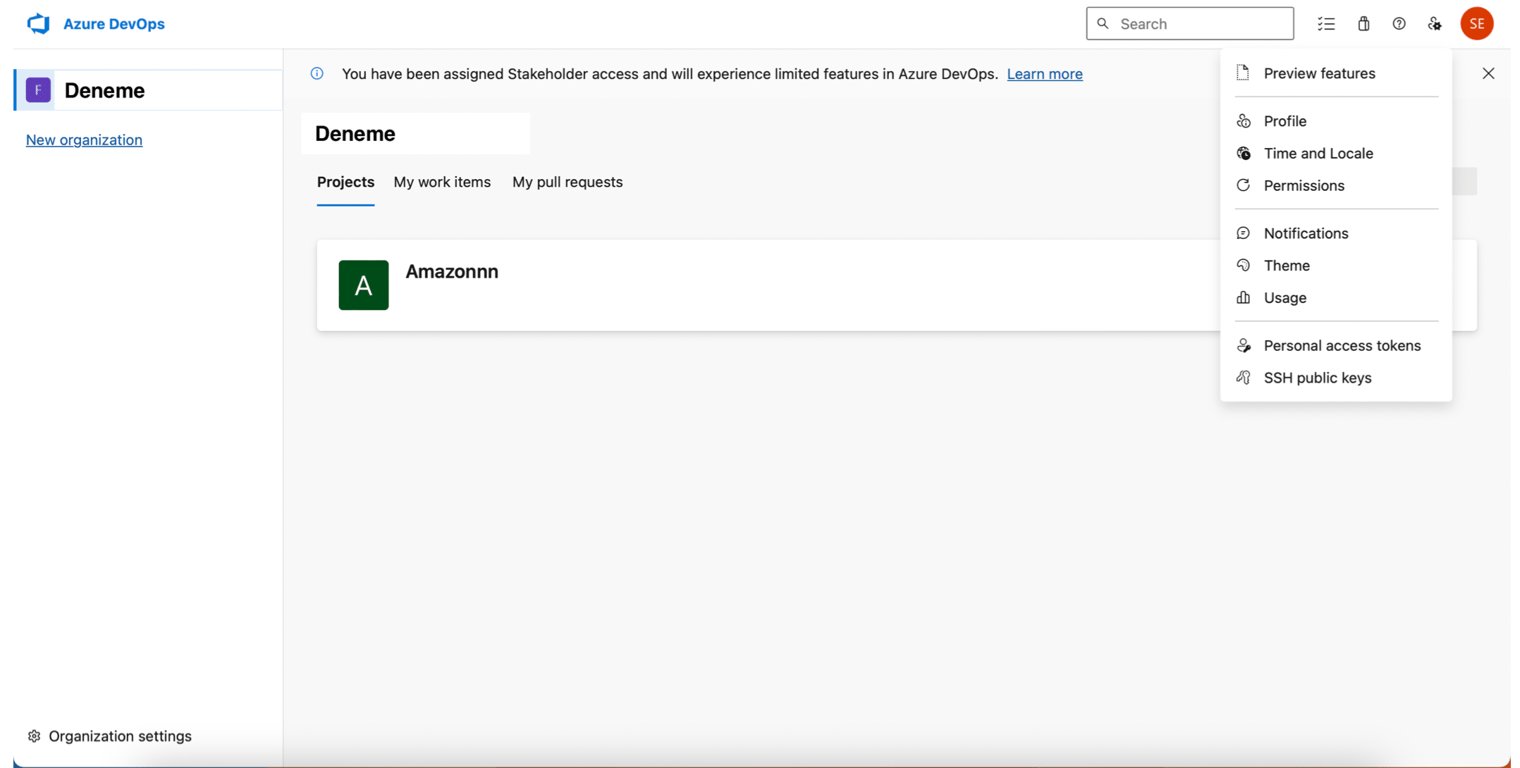

Click on User Settings and select Personal Access Tokens from the displayed menu.

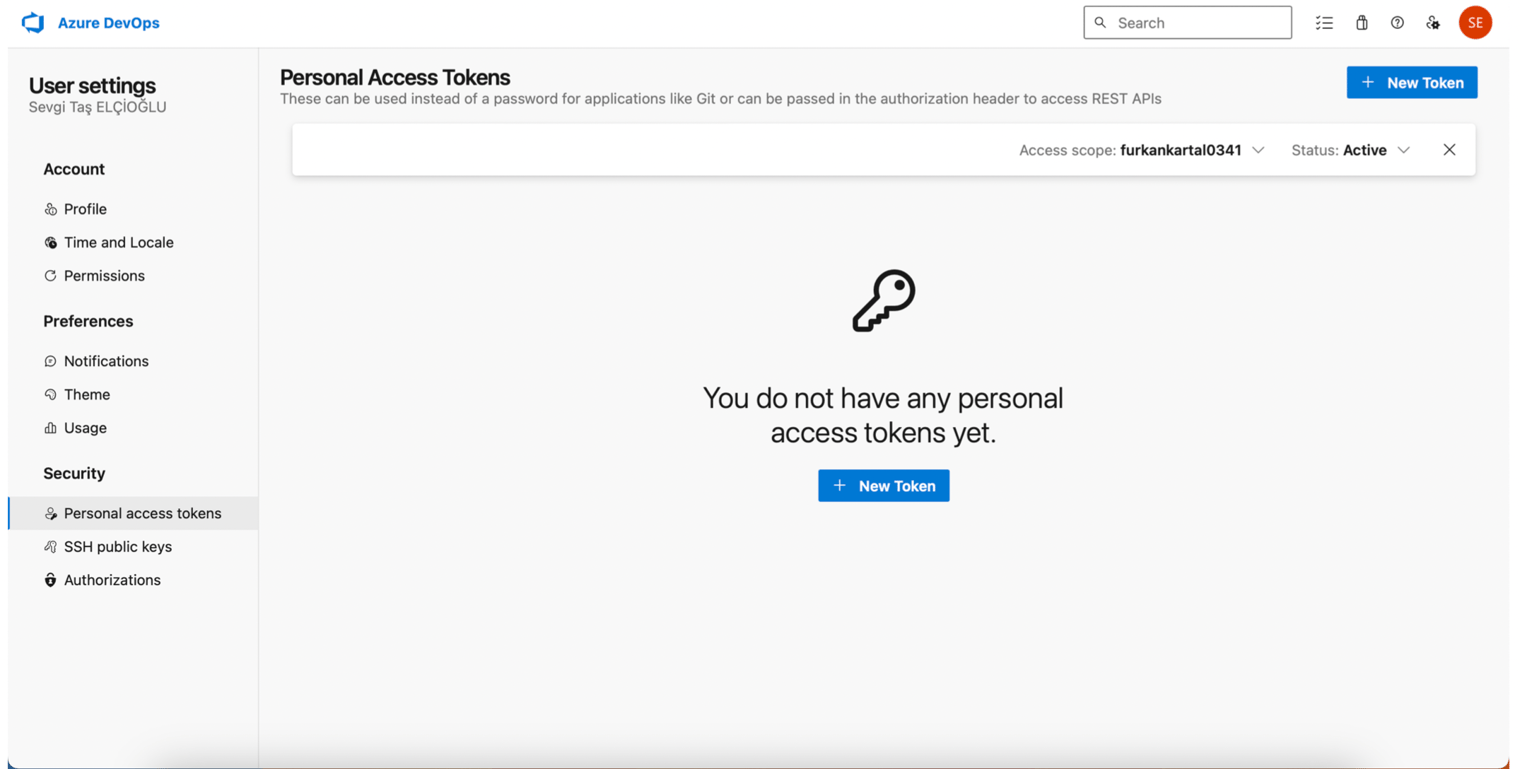

On the Personal Access Token screen, click the New Token button.

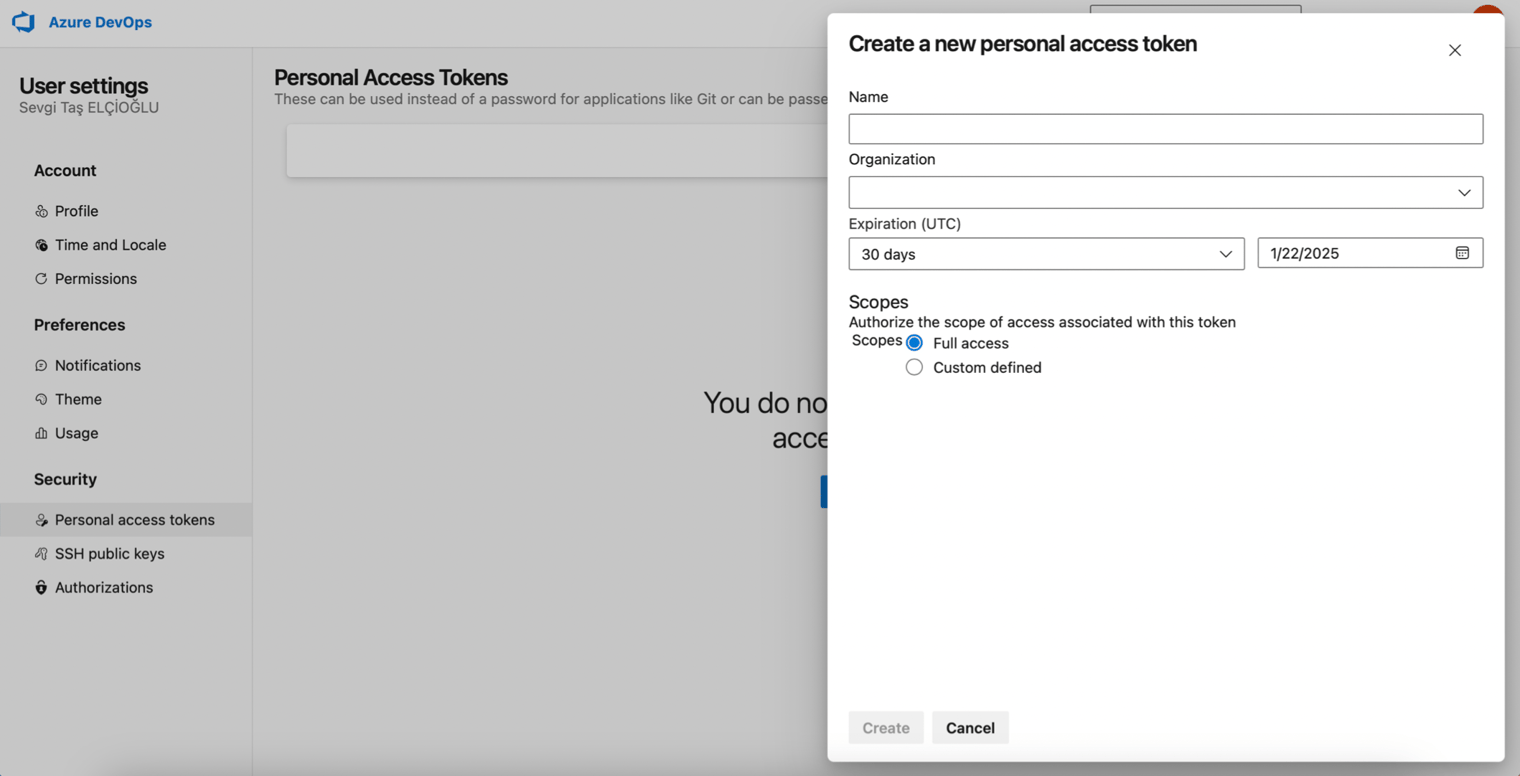

On the displayed screen, fill in the following fields: Name, Organization, and Expiration. In the Scopes section, select Full Access.

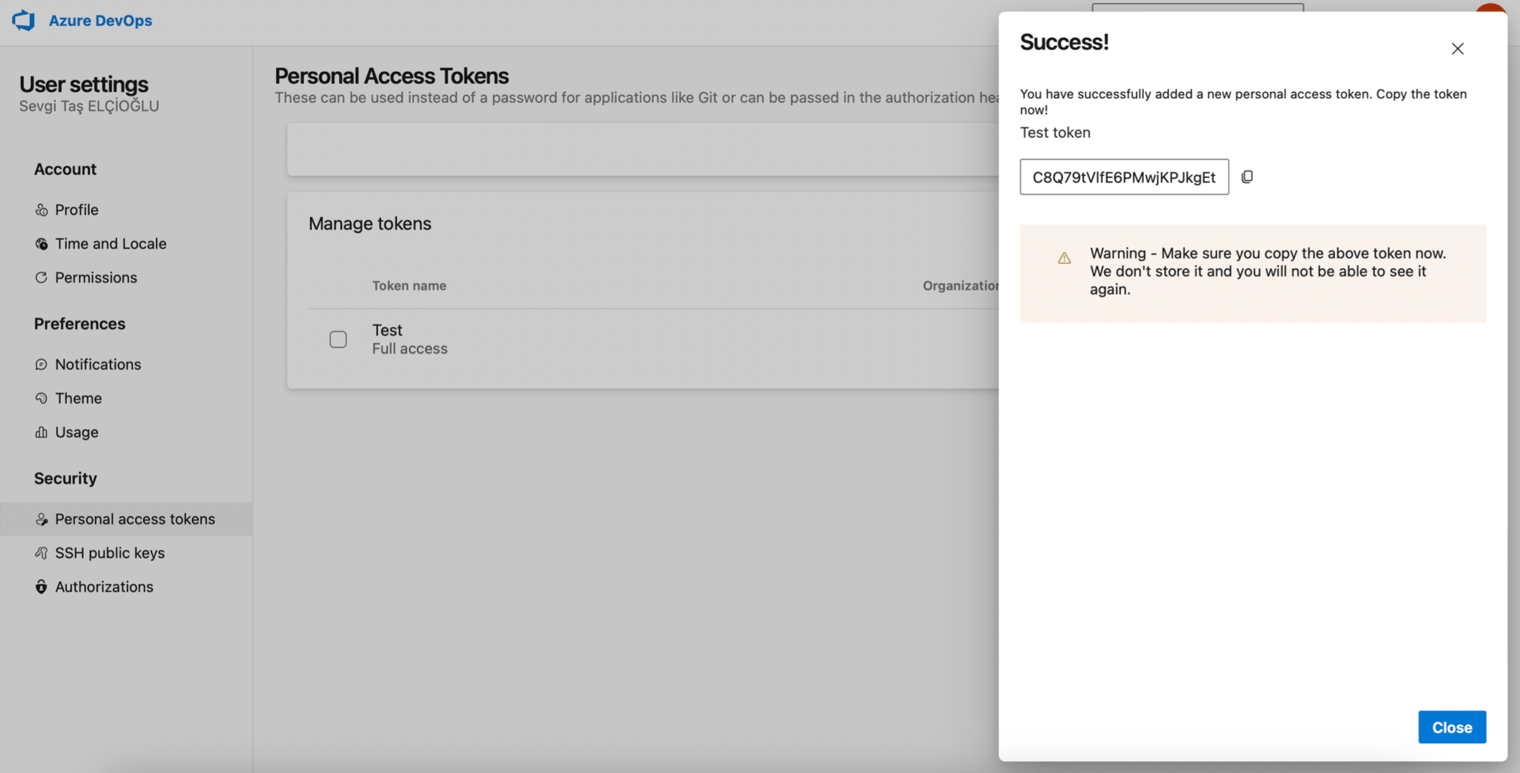

Click the Create button to generate the token. Copy the generated token and paste it into the relevant field in Testinium.

After adding the plugin and configuring the Azure DevOps Board account settings, follow the steps below to set up project-based configurations:

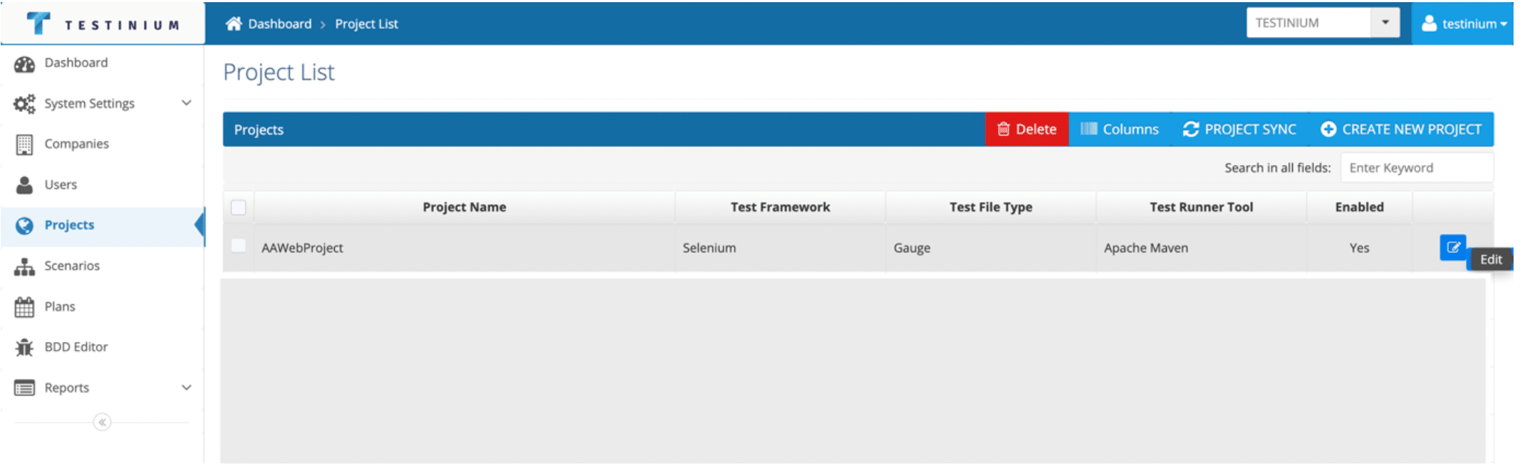

Navigate to the Projects page from the Dashboard and select the project to be integrated.

Click the Edit button.

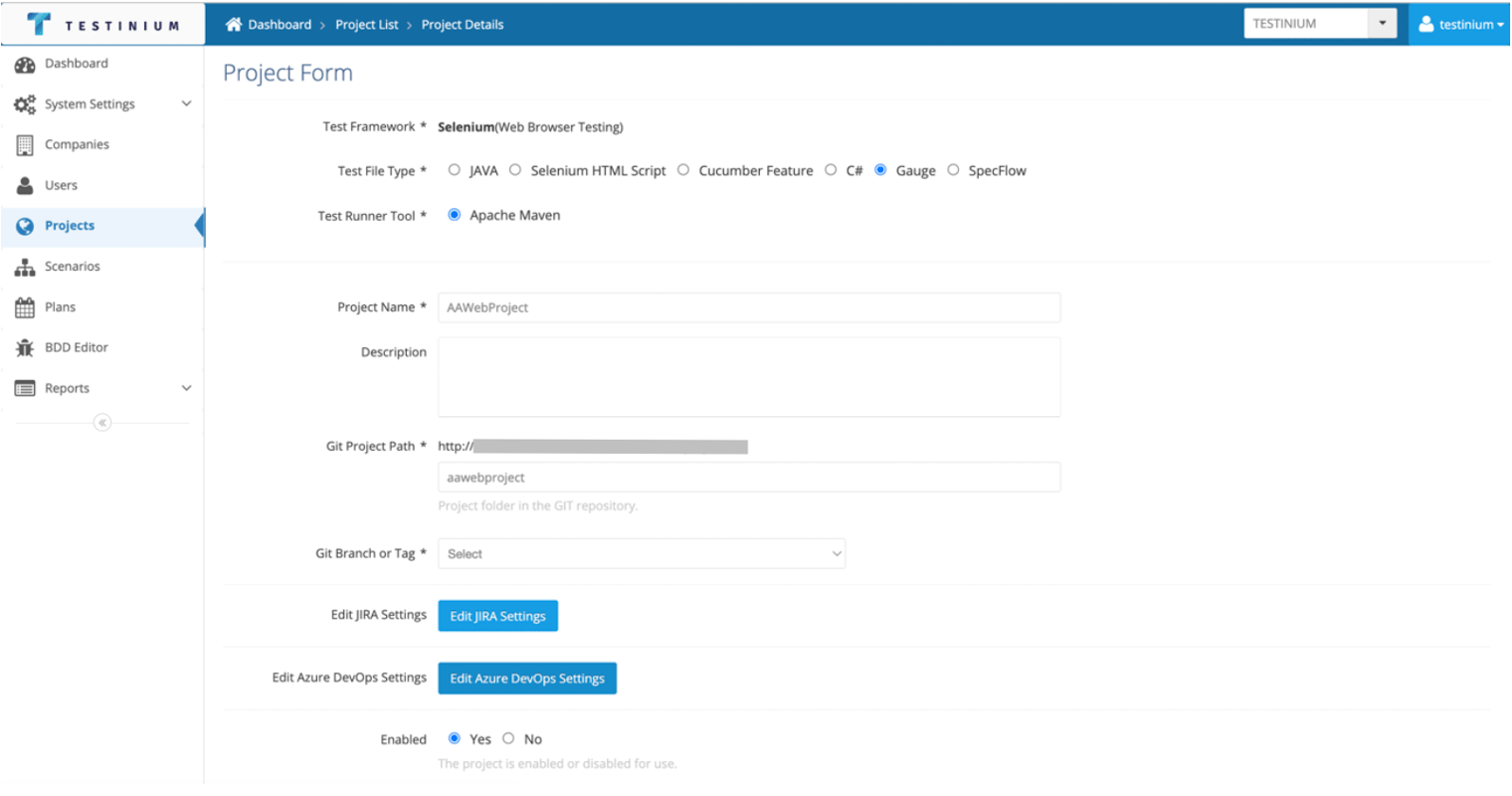

On the Project Edit page, click the Edit Azure DevOps Settings button to configure the integration settings.

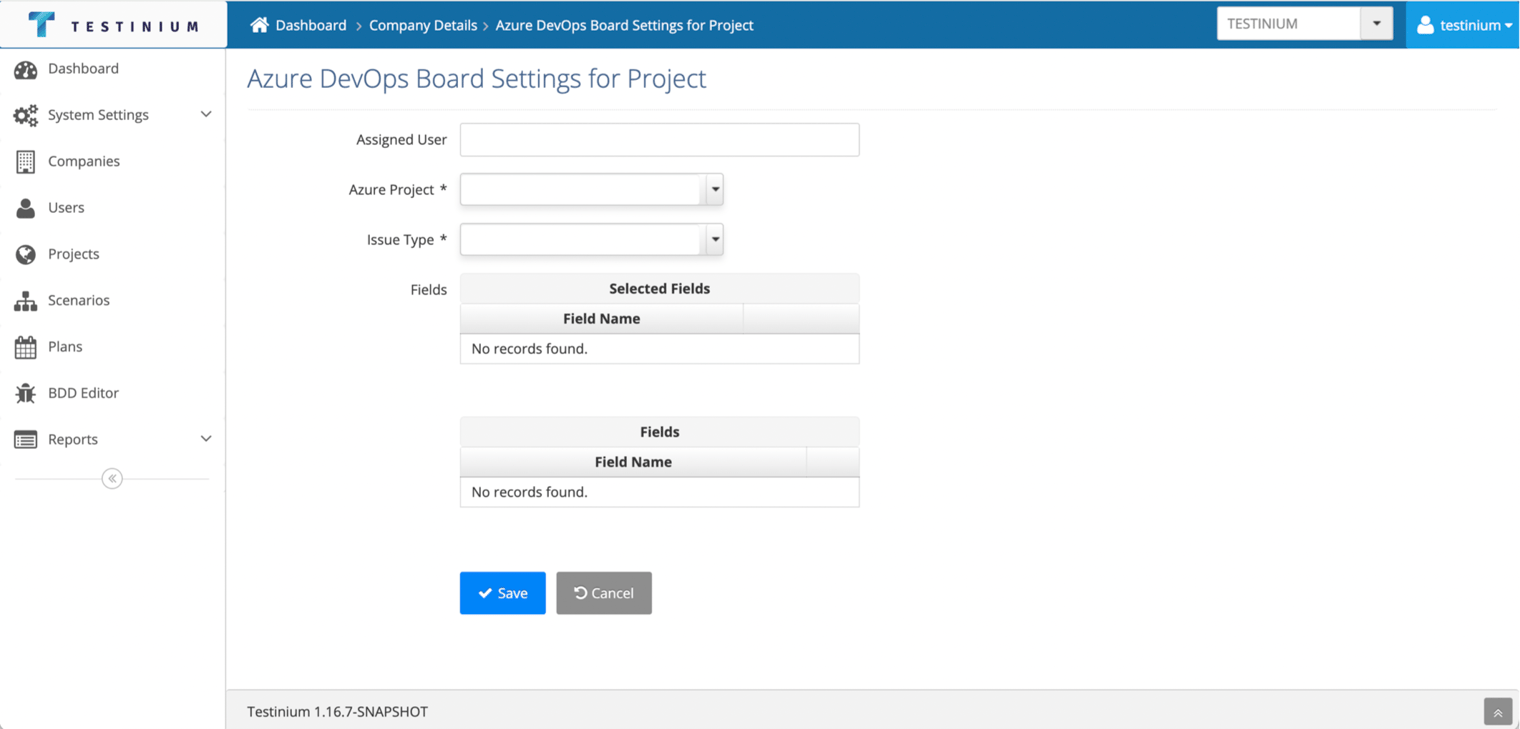

On the displayed screen, fill in the following fields:

Assigned User

Azure Project (The project where issues will be created in Azure DevOps Board)

Issue Type

Selected Fields

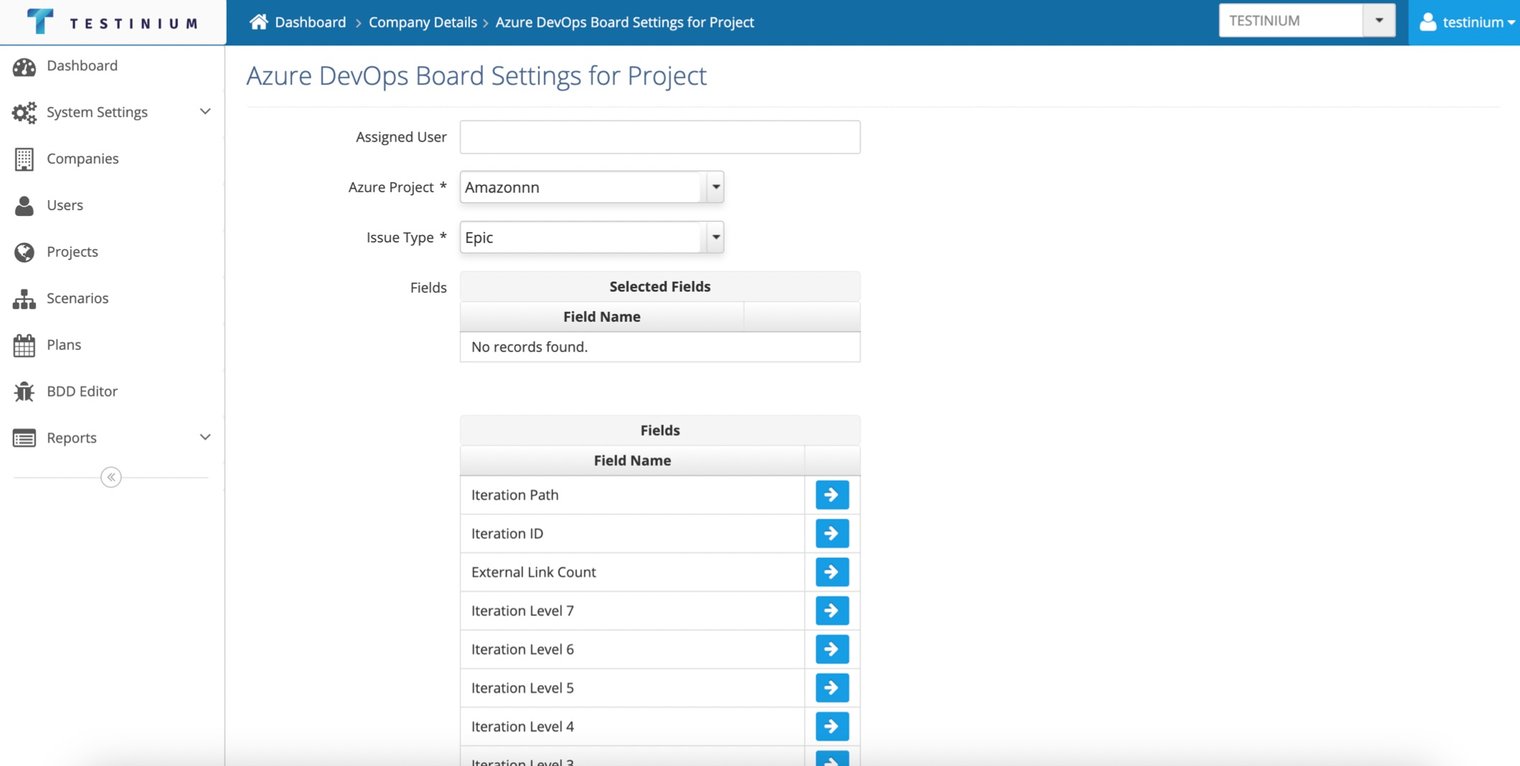

The Fields section is listed based on the selected Issue Type. Use the arrow icon in the Fields list to move the selected fields to the Selected Fields section. (The Title field is mandatory for creating an issue in Azure DevOps.)

Note: The available fields in the Fields section vary depending on the selected Issue Type. For specific requests or custom fields, please contact the Support team.

After completing the Azure DevOps integration settings for the project, follow the steps below to create an issue in Azure DevOps within the related project:

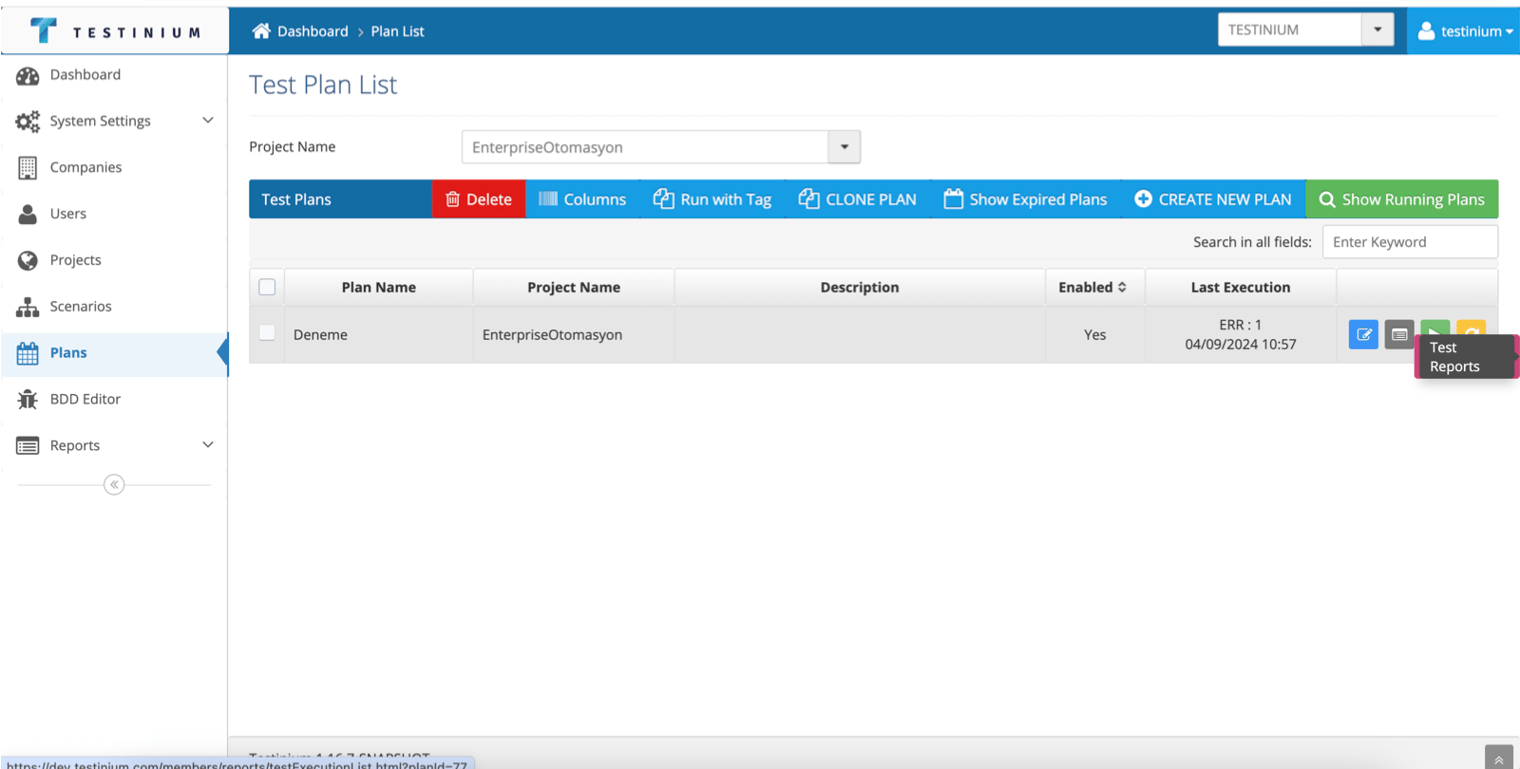

Open the Plans page.

Select the relevant project from the Project Name field. The plans associated with the project will be listed.

Click the Test Report button.

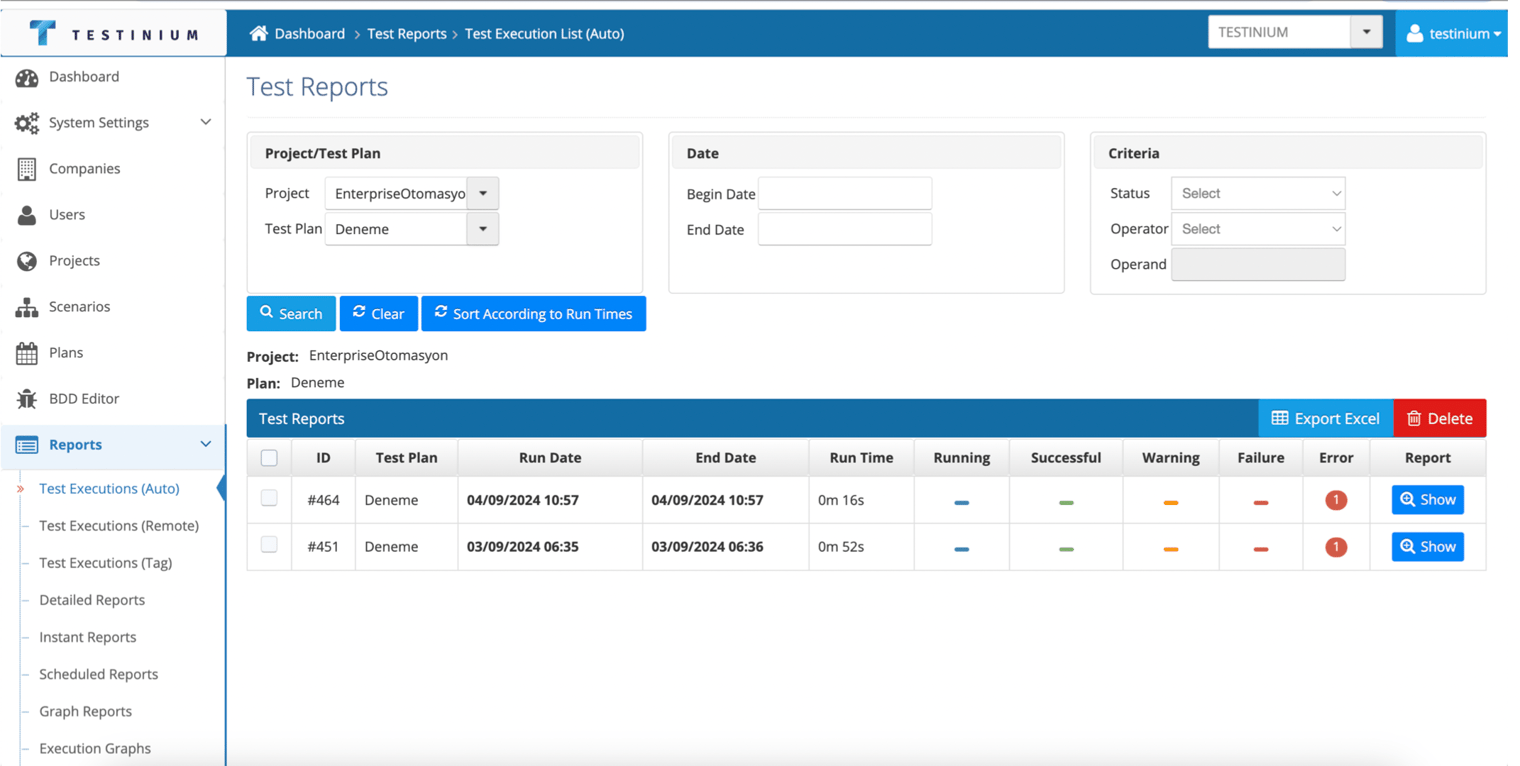

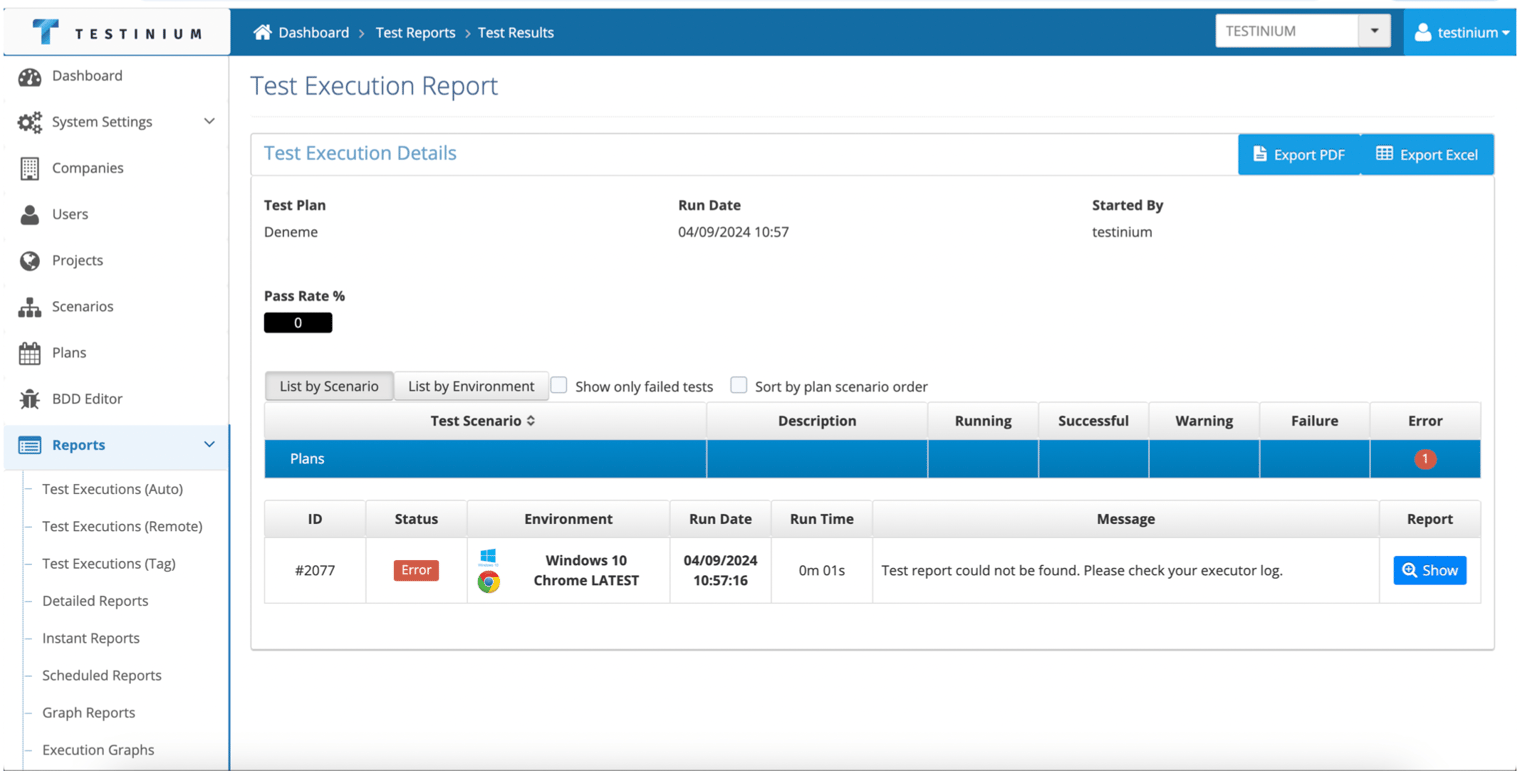

On the displayed screen, the test executions related to the selected project and plan are listed (Test Execution List (Auto) page). Click the Show button.

The Test Result screen opens for the selected test execution. Click the Show button to open the Test Result Details page.

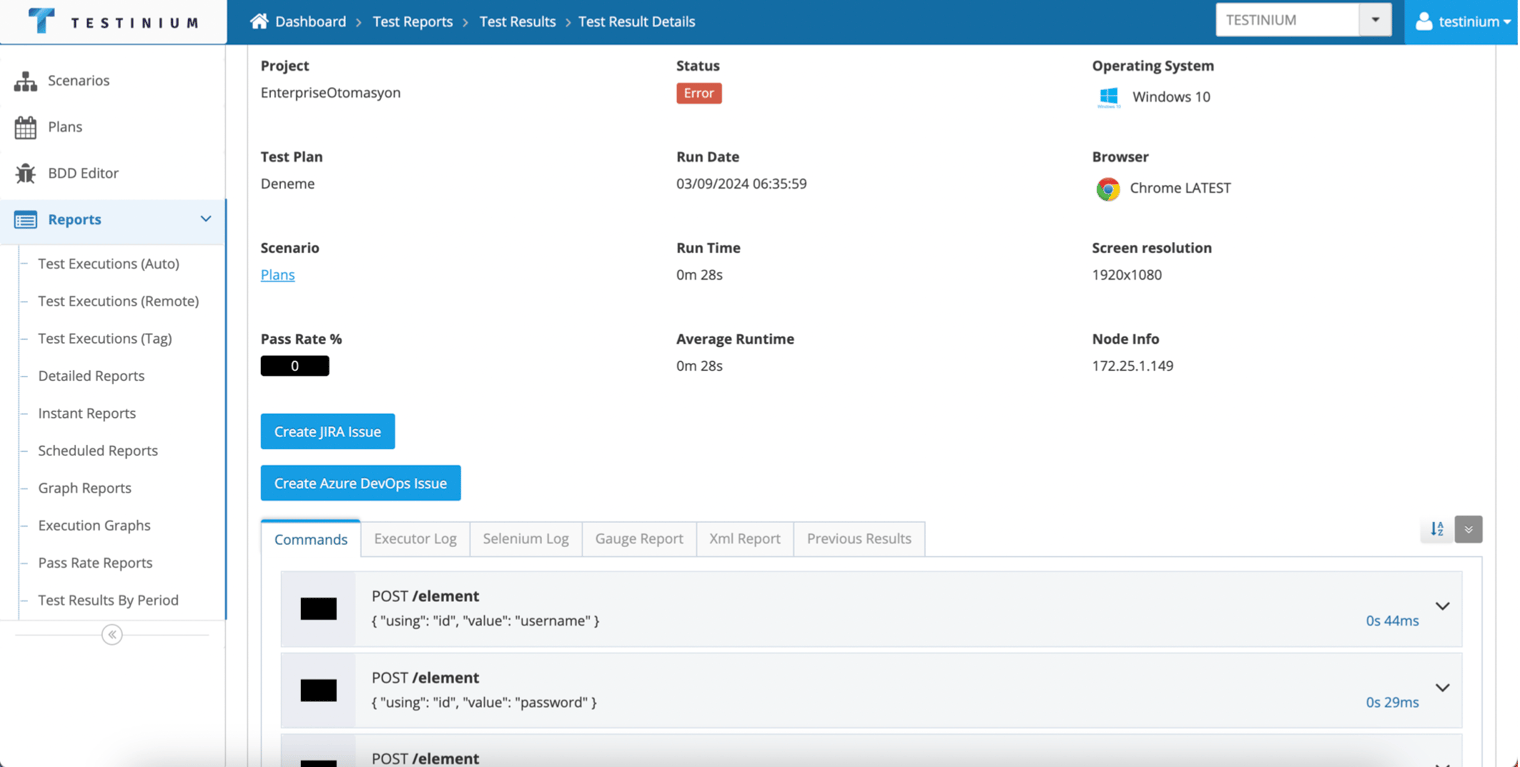

Click the Create Azure DevOps Issue button.

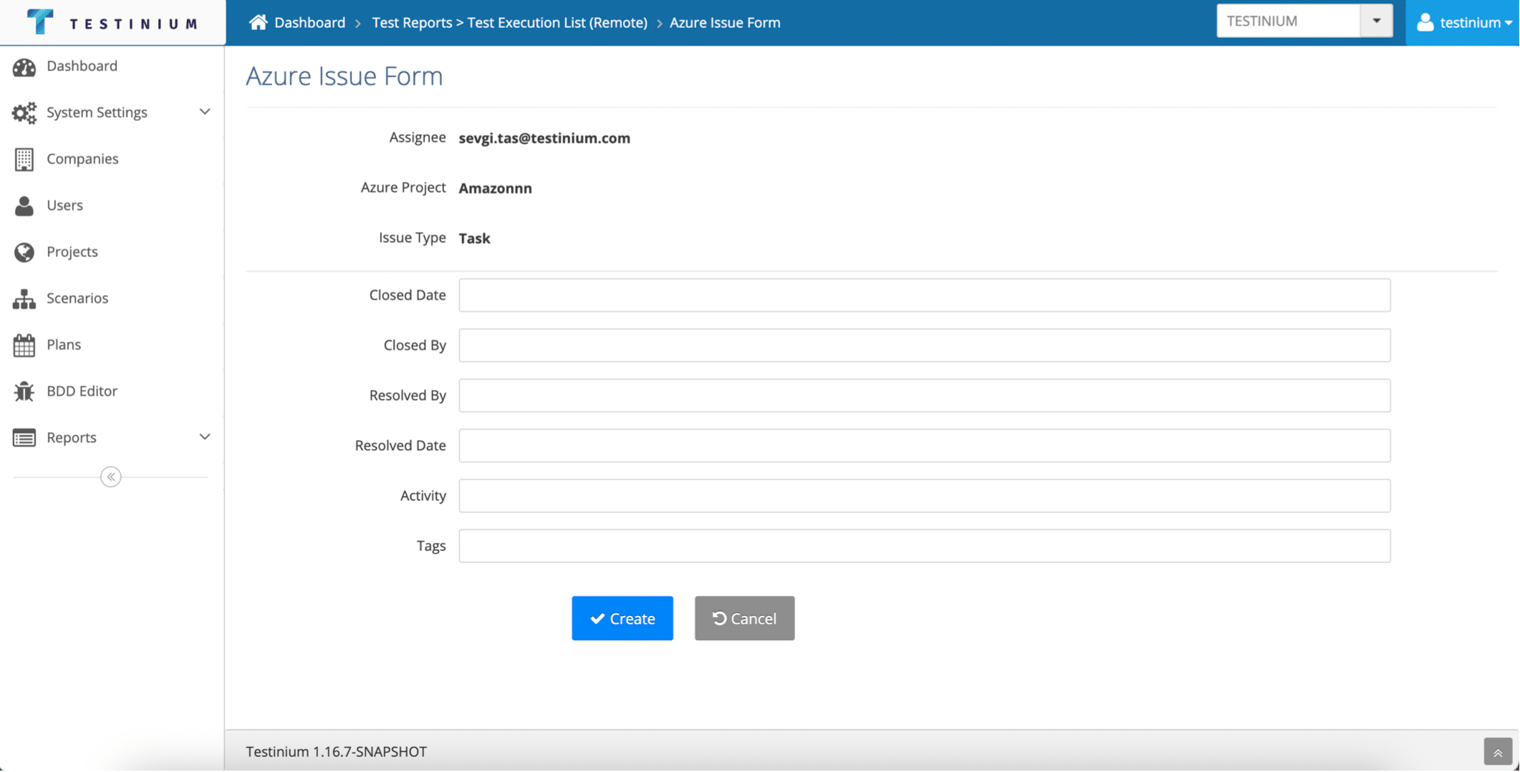

Fill in the required fields in the Azure Issue Form. Click the Create button to generate the issue in Azure DevOps.

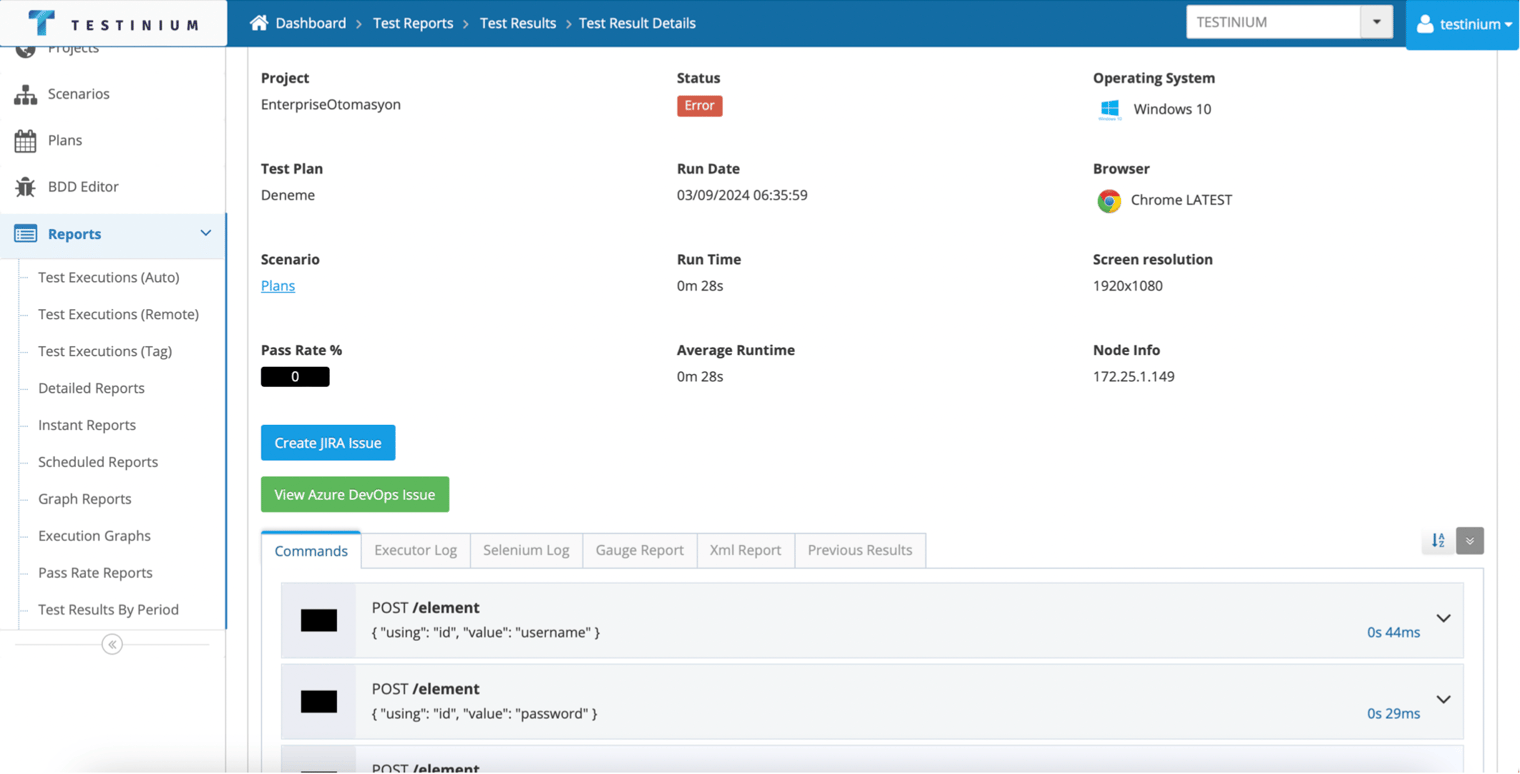

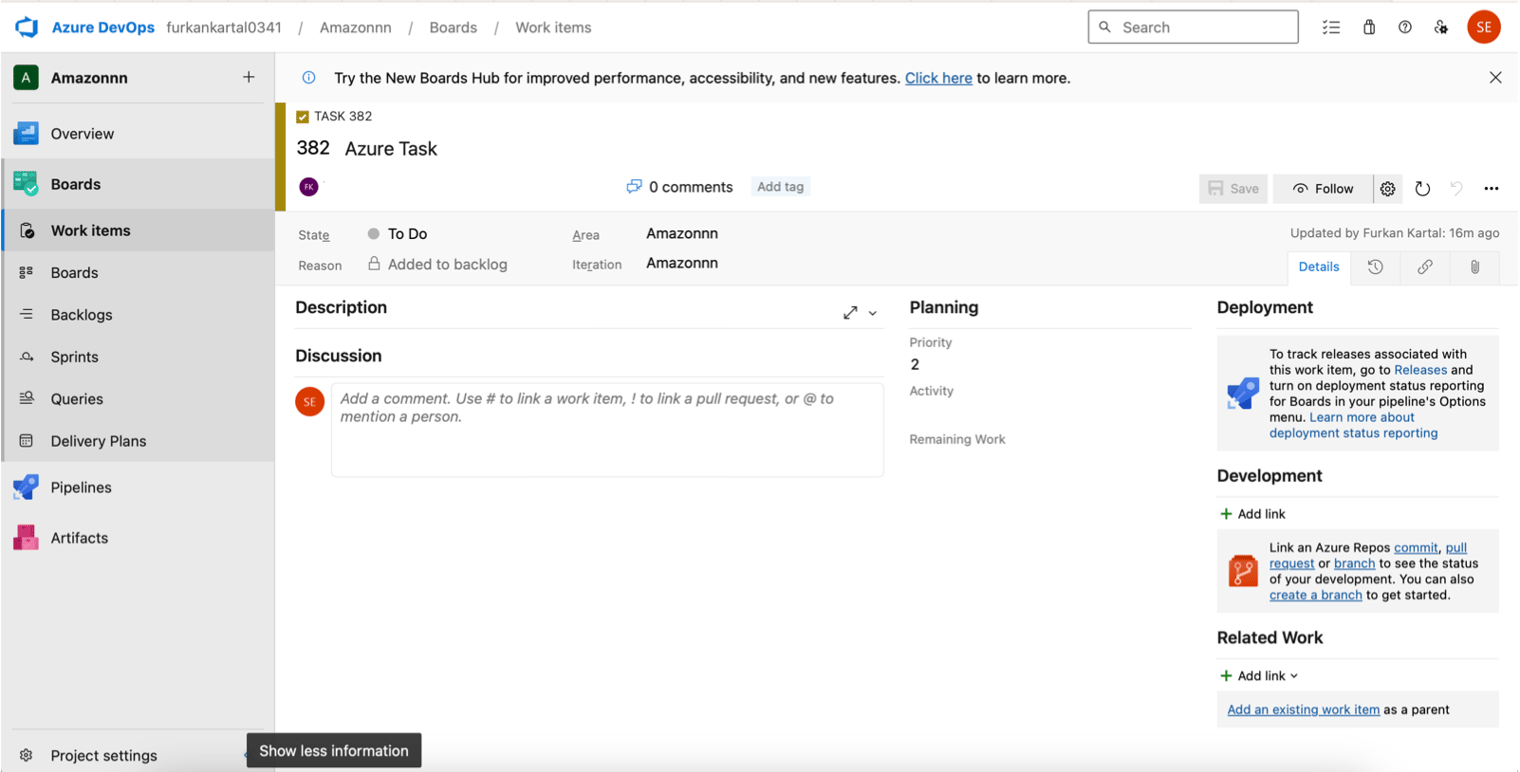

After the issue is created, the Create Azure DevOps Issue button on the Test Result Details screen is updated to View Azure DevOps Issue. Click the View Azure DevOps Issue button to open the created issue in the Azure DevOps Board.
